BT5-4726 24V A/C Compressor – Sanden SD7H15-SHD, 8-Groove, GK Head

Description

Overview

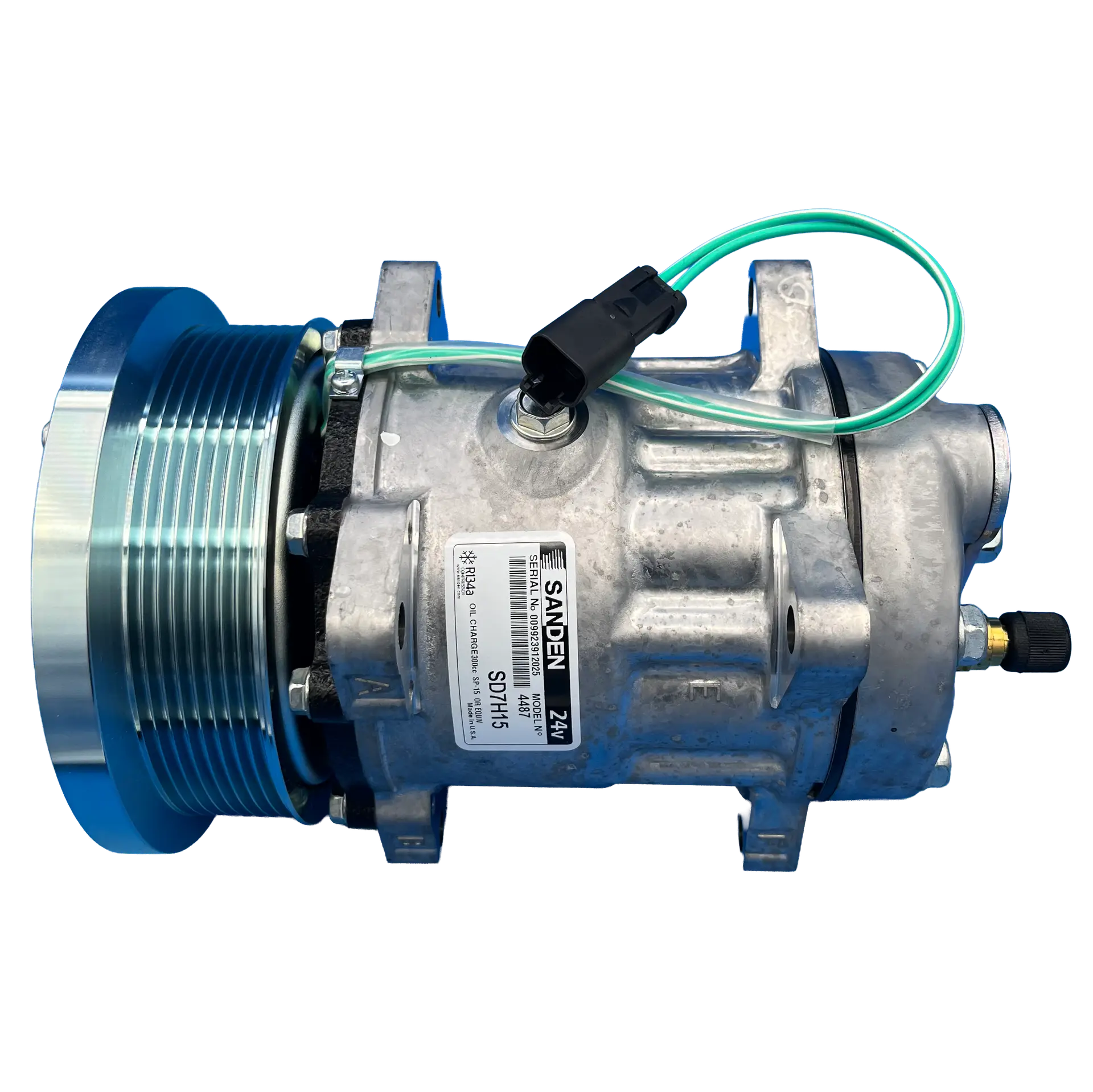

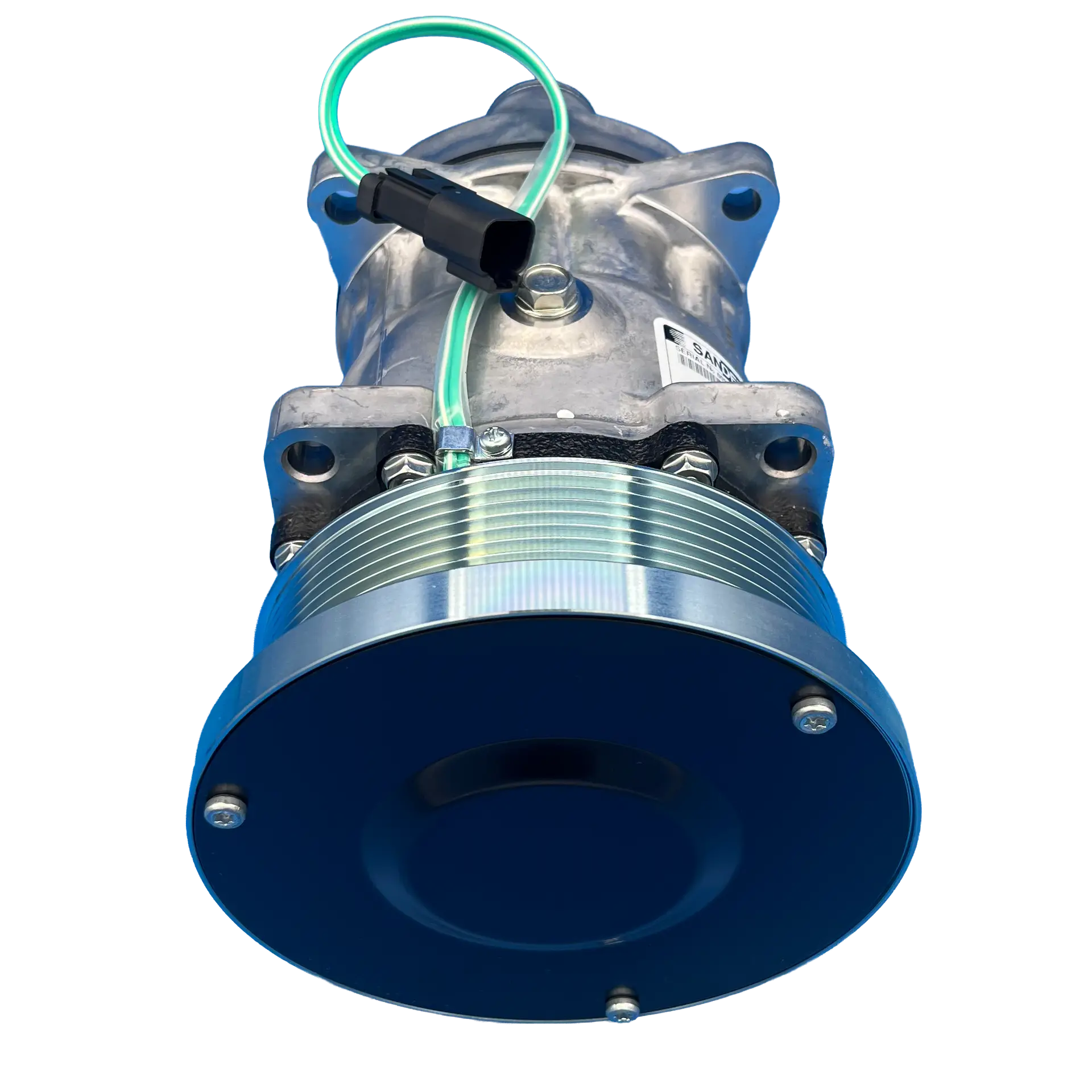

The BT5-4726 SD7H15-SHD compressor is designed for 24V mobile HVAC systems where durability, vibration resistance, and consistent output are critical. Its ear-mount long design allows for secure installation on heavy equipment, while the rear horizontal pad O-ring fittings support clean hose routing in tight engine bays.

Furthermore, this compressor uses PAG100 oil, rotates clockwise, and includes a Deutsch 2-wire electrical connector, ensuring compatibility with modern heavy-duty electrical systems.

---

Key Features

• 24-volt heavy-duty A/C compressor

• Sanden SD7H15-SHD compressor platform

• 8-groove serpentine belt drive

• 132 mm clutch diameter

• Rear horizontal pad O-ring fittings

• GK head configuration

• Ear-mount long housing

• Built for agricultural and off-road equipment

---

Compressor Specifications

General

• Manufacturer: Sanden

• Model: SD7H15-SHD

• Voltage: 24V

• Refrigerant Type: R134a

• Number of Cylinders: 7

• Displacement: 9.5 cu.in.

---

Mounting & Drive

• Mounting Type: Ear 8 Long

• Drive Type: Belt-driven

• Belt Type: Serpentine

• Clutch Grooves: 8

• Clutch Diameter: 132 mm

• Shaft Type: Long key shaft

---

Head & Fittings

• Head Type: GK

• Fitting Port Position: Horizontal

• Fitting Style: Rear horizontal pad O-ring

• Replacement Head Assembly: 5602

---

Oil Specifications

• Oil Type: PAG100

• Factory Oil Charge: 300 cc

---

Electrical Specifications

• System Voltage: 24V

• Wire Type: 2-wire Deutsch (DT04-2P-E – 005 / EP04 / EP05)

• Rotation: CW

• Diode Protection: None

---

Interchange / Cross-Reference Numbers

Primary References

• BTRAC: BT5-4726

• MEI: 5313

---

OEM & Manufacturer Numbers

• Sanden: 4487, 4726

• Alliance (Freightliner): ABP N83 304353

• Case IH: 1419676, 2180234

• Caterpillar: 114-9676, 141-9676, 218-0234, 218-0324

---

Aftermarket & Supplier References

• Truck Air: 03-3733

• CoolStar: 330-3065

• DTAC: 01-05726

• Industry ID: 20-04726

---

Red Dot References

• Red Dot Aftermarket: 75R84594

• Red Dot Factory: RD-5-10260-0P

---

Additional Aftermarket References

• NRF 32828

• Thermotec KTT090493

• Nissens 89665

---

Typical Applications

• Agricultural equipment

• Construction and earth-moving machinery

• Off-road and industrial equipment

• OEM and aftermarket SD7H15-SHD replacements
