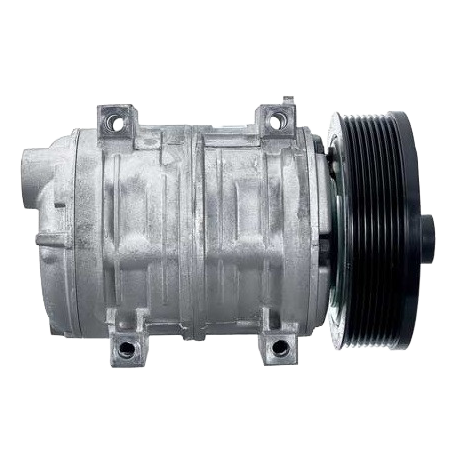

BT5-47246 24V A/C Compressor – Seltec / Valeo TM21HX, 8-Groove, Direct Mount
$331.87
The BT5-47246 is a 24-volt Seltec / Valeo TM21HX A/C compressor designed for high-capacity bus and transit HVAC systems that require a direct-mount compressor, 8-groove serpentine clutch, and horizontal pad fittings. Because this unit uses the TM21HX 10-cylinder platform, it delivers consistent, high-output cooling performance in continuous-duty applications.
In addition, this compressor supports R134a refrigerant, features a 141 mm PV8 clutch, and is built to OEM fitment standards, making it a dependable replacement across multiple bus and fleet platforms.
In stock (can be backordered)
Description
Overview
The BT5-47246 TM21HX compressor is engineered for 24V mobile air-conditioning systems where reliability, capacity, and precise mounting geometry are critical. Its direct-mount design simplifies installation, while the horizontal pad fitting layout supports clean hose routing in tight engine compartments.
Furthermore, the compressor supports CW/CCW rotation, uses a splined shaft, and comes factory-configured for PAG oil, allowing compatibility across a wide range of heavy-duty HVAC systems.
Key Features
-
24-volt heavy-duty A/C compressor
-
Seltec / Valeo TM21HX compressor platform
-
Direct-mount configuration
-
8-groove serpentine belt drive (PV8)
-
141 mm clutch diameter
-
Horizontal pad-style fittings
-
High-capacity 10-cylinder design
-
Built for continuous-duty bus HVAC systems
Compressor Specifications
General
-
Manufacturer: Seltec / Valeo
-
Model: TM21HX
-
Voltage: 24V
-
Refrigerant Type: R134a
-
Number of Cylinders: 10
Mounting & Drive
-
Mounting Type: Direct mount
-
Drive Type: Belt-driven
-
Belt Type: Serpentine
-
Clutch Grooves: 8 (PV8)
-
Clutch Diameter: 141 mm
-
Hub Type: 3E
-
Shaft Type: Splined shaft
Head & Fittings
-
Head Type: G
-
Fitting Port Position: Horizontal
-
Fitting Style: Pad (GM-style pad)
-
Replacement Head Assembly: NSS
Oil Specifications
-
Oil Type: PAG (per OE specification)
Electrical Specifications
-
System Voltage: 24V
-
Wire Type: 2-wire / dual bullet
-
Rotation: CW / CCW
Interchange / Cross-Reference Numbers
Primary References
-
BTRAC: BT5-47246
-
MEI: 5881
OEM & Manufacturer Numbers
18-10123-05, 10057246, 100-57246, 10357246, 103-57395, 435-57246, 488-47246, 10367268
Seltec / Valeo References
47246, 5881, 5881G, 103-57246, 488-47246
Industry & Aftermarket Cross References
20-47246, 2521563, 512219, 4379-RD5118662P
Fleet & Supplier References
ABP N83 304743, ACC8325, PTAC5881, RF999999710
Red Dot & Related
RDHRD5118662P, RDT75R86144Q, 75R86144A, 75R86144Q
Additional References
CO 47246I, CO-6292CA, QP21-1563
Typical Applications
-
Transit and coach buses
-
Shuttle and specialty buses
-
High-capacity mobile HVAC systems
-
OEM and aftermarket TM21HX compressor replacements
Additional information
| Weight | 19 lbs |
|---|---|
| Make | |
| Model | |
| Voltage | |
| Electric | |
| Mount | |
| Groove | |
| Diameter | |
| Head | |
| Fitting/Port | |
| Wires | |
| Oil Amount | |
| Oil Type | |
| Refrigerant | R134A |
