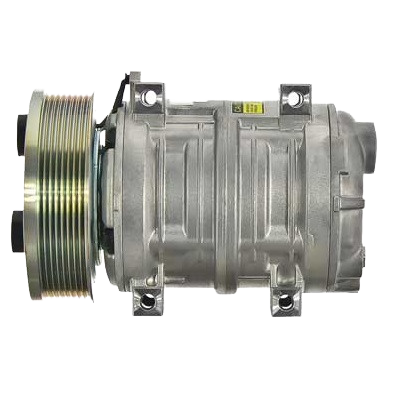

BT5-47244 12V A/C Compressor – Seltec / Valeo TM21HX, 8-Groove, Direct Mount
$325.22
The BT5-47244 is a 12-volt Seltec / Valeo TM21HX A/C compressor engineered for bus and high-capacity mobile HVAC systems that require an 8-groove serpentine drive and direct-mount configuration. Because this unit uses a 10-cylinder TM21HX platform, it delivers strong, consistent cooling performance in continuous-duty transit applications.
In addition, the compressor supports R134a refrigerant, features a 141 mm 8-groove clutch, and uses rear pad fittings, making it a dependable OEM-style replacement across multiple bus and coach platforms.
In stock (can be backordered)
Description
Overview
The BT5-47244 TM21HX compressor is designed for 12V mobile air-conditioning systems where cooling capacity, durability, and precise fitment are critical. Its direct-mount design simplifies installation, while the rear pad head configuration supports consistent hose alignment in confined engine compartments.
Furthermore, this compressor is factory-charged with PAG46 oil, uses a splined shaft, and supports CW/CCW rotation, allowing flexibility across a wide range of belt-drive layouts commonly found in bus HVAC systems.
Key Features
-
12-volt heavy-duty A/C compressor
-
Seltec / Valeo TM21HX compressor platform
-
Direct-mount configuration
-
8-groove serpentine belt drive
-
141 mm clutch diameter
-
Rear pad fitting configuration
-
High-capacity 10-cylinder design
-
Designed for continuous mobile HVAC operation
Compressor Specifications
General
-
Manufacturer: Seltec / Valeo
-
Model: TM21HX
-
Voltage: 12V
-
Refrigerant Type: R134a
-
Number of Cylinders: 10
Mounting & Drive
-
Mounting Type: Direct mount
-
Drive Type: Belt-driven
-
Belt Type: Serpentine
-
Clutch Grooves: 8
-
Clutch Diameter: 141 mm
-
Shaft Type: Splined shaft
Head & Fittings
-
Head Type: TM21
-
Fitting Port Position: Rear
-
Fitting Style: Pad
-
A-B Distance: 51 mm
-
Replacement Head Assembly: NSS
Oil Specifications
-
Oil Type: PAG46
-
Factory Oil Charge: 6.9 oz
Electrical Specifications
-
System Voltage: 12V
-
Wire Type: 2-wire
-
Rotation: CW / CCW
Interchange / Cross-Reference Numbers
Primary References
-
BTRAC: BT5-47244
-
MEI: 5880
OEM & Manufacturer Numbers
304743, 18-10123-04, 10057244, 10357244, 10367276, 435-57244, 488-47244, 10367274, 10367277
Seltec / Valeo References
47244, 5880, 488-57244, 103-57244, 103-57544
Industry & Aftermarket Cross References
03-00738, 1403145, 17-31311-00, 20-47244, 20-47244-HP, 2521562, 340-3326, 400-045
Fleet & Supplier References
ABP N83 304745Q, ABP N83 304754Q, ACC8324, PTAC5880, RF999997031
Red Dot & Related
4379-RD5125301P, RDHRD5125301P, RDT75R86142Q, 75R86142A, 75R86142Q
Additional References
QP21-1562, CO 47244I, CO-6291CA
Typical Applications
-
Transit and coach buses
-
Shuttle and specialty buses
-
High-capacity mobile HVAC systems
-
OEM and aftermarket TM21HX compressor replacements
Additional information
| Weight | 19 lbs |
|---|---|
| Make | |
| Model | |
| Voltage | |
| Electric | |
| Mount | |
| Groove | |
| Diameter | |
| Fitting/Port | |
| Wires | |
| Oil Amount | |
| Oil Type | |
| Refrigerant | R134A |
