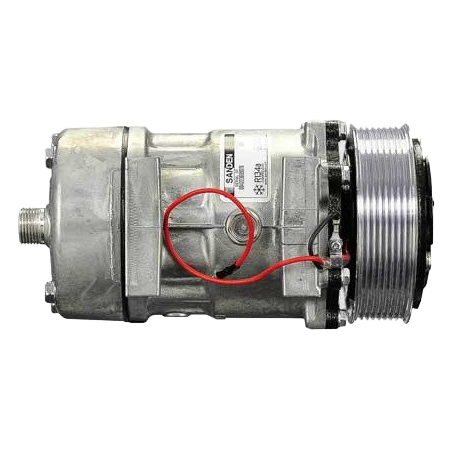

BT5-4666 12V A/C Compressor – Sanden SD7H15HD, KC Head, Direct Long Mount

Description

Overview

The BT5-4666 Sanden SD7H15HD compressor is designed for 12V mobile air-conditioning systems where durability, compatibility, and service life are critical. Its direct-long mounting style supports rigid, OEM-style installation on buses, trucks, and specialty equipment.

At the same time, the KC head configuration with #8 and #10 male insert O-ring ports allows clean hose routing and reliable sealing. Because it uses PAG100 oil and a long-key shaft design, this compressor integrates seamlessly into existing SD7H15HD systems while maintaining long-term reliability.

---

Key Features

• 12-volt heavy-duty A/C compressor

• Sanden SD7H15HD compressor platform

• KC-style cylinder head

• Direct-long mounting configuration

• 8-groove serpentine belt drive

• 119 mm clutch diameter

• Horizontal male insert O-ring fittings

• Designed for continuous mobile HVAC operation

---

Compressor Specifications

General

• Manufacturer: Sanden

• Model: SD7H15HD

• Voltage: 12V

• Refrigerant Type: R134a

• Displacement: 9.5 cu.in.

• Number of Cylinders: 7

---

Mounting & Drive

• Mounting Type: Direct Long

• Drive Type: Belt-driven

• Belt Type: Serpentine

• Clutch Grooves: 8

• Clutch Diameter: 119 mm

• Shaft Type: Long key shaft

---

Head & Fittings

• Head Type: KC

• Fitting Port Position: Horizontal

• Fitting Style: Male insert O-ring

• Fitting Size: 3/4″ × 7/8″ (#8 & #10)

---

Oil Specifications

• Oil Type: PAG100

• Factory Oil Charge: 240 cc

---

Electrical Specifications

• System Voltage: 12V

• Wire Type: 1-wire male bullet

• Rotation: Clockwise (CW)

• Diode Protection: None

---

Interchange / Cross-Reference Numbers

Primary References

• BTRAC: BT5-4666

• MEI: 5707

---

OEM & Manufacturer Numbers

304187, 304263, 304596, 304973, 4C4Z-19703DA, 3579878C1, 3507022, 3547022, 501-298, 406046

---

Industry & Aftermarket Cross References

20-04667, 20-10089, 232-9267, 300-4497, 330-2112, 525997, 90032390, 909041A

---

Sanden / Compressor References

4094, 4666, 4467, 5707, 75R84472

---

Fleet & Supplier References

ABP N83 304263, ACC3112, K318-103, YCC393, ZGG705016

---

Red Dot & Related

4379-RD5102850, 4379-RD5102850P, RDHRD5102850P, RDT75R84472

---

Typical Applications

• Transit and school buses

• On-highway trucks

• Vocational and fleet vehicles

• Mobile HVAC systems using SD7H15HD KC-head configuration
