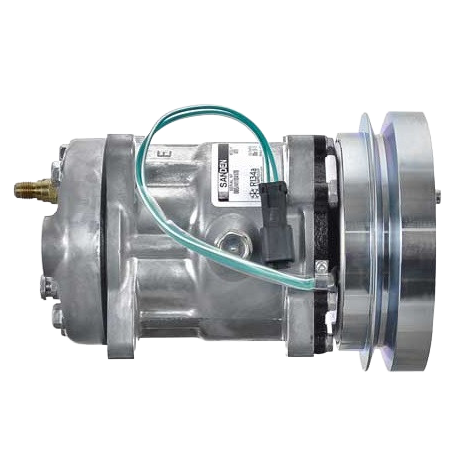

BT5-4640 24V Super Heavy-Duty A/C Compressor – SD7H15-SHD, Ear Mount, 1-Groove 132 mm, GK Head

Description

Overview

The BT5-4640 SD7H15-SHD compressor is engineered for 24V mobile air-conditioning systems commonly used in agricultural, construction, and off-road equipment. Because of its ear 8-long mounting design, the compressor provides enhanced stability in high-vibration operating conditions. At the same time, the single 1/2-inch belt drive and 132 mm clutch support consistent power transfer.

Additionally, this unit uses a GK-style rear horizontal pad head with O-ring sealing, which allows for clean hose routing in both OEM and aftermarket installations. As a result, the BT5-4640 integrates easily into replacement and retrofit systems across multiple heavy-duty platforms.

---

Key Features

• 24-volt Super Heavy-Duty A/C compressor

• SD7H15-SHD compressor platform

• Ear 8-long mounting configuration

• Single-groove clutch for 1/2″ belt systems

• 132 mm clutch diameter

• GK-style cylinder head

• Rear horizontal O-ring pad fittings

• 2-wire Deutsch electrical connector

• Designed for continuous off-road HVAC operation

---

Compressor Specifications

General

• Compressor Family: SD7H15

• Model: SD7H15-SHD

• Style: Super Heavy Duty

• Voltage: 24V

• Refrigerant Type: R134a

• Rotation: Clockwise (CW)

• Displacement: 9.5 cu.in.

• Number of Cylinders: 7

---

Mounting & Drive

• Mounting Style: Ear, 8 Long

• Drive Type: Belt-driven

• Belt Type: 1/2″ belt

• Clutch Grooves: 1

• Clutch Diameter: 132 mm

• Shaft Type: Long key shaft

---

Head & Fittings

• Head Type: GK

• Fitting Port Position: Horizontal

• Fitting Style: Rear horizontal O-ring pad

---

Oil Specifications

• Oil Type: PAG100

• Factory Oil Charge: 300 cc

---

Electrical Specifications

• System Voltage: 24V

• Wire Type: 2-wire Deutsch #DT04-2P-E (005, EP04, EP05)

• Diode Protection: None

---

Service & Replacement Components

• Replacement Clutch Assembly: 5134

• Replacement Head Assembly: 5602

---

Interchange / Cross-Reference Numbers

• BTRAC: BT5-4640

• MEI: 5312

• Sanden: 4479, 4640, 4658

OEM & Supplier References

• Alliance: 304721, 304734

• Case IH: 1065122

• Caterpillar: 106-5016, 106-5122, 106-5123, 3E1909

• CoolStar: 330-3225

• Truck Air: 03-3732

Additional Interchange References

20-04479, 265-6984, 300-5098, 300-5104, 4379-RD5112480, 4379-RD5112480P, 5312, 75R81274, 8109, 8T-8816, ABP N83 304721, ACC4225, RDHRD5112480P, RDT75R81274, 509-588

---

Typical Applications

• Agricultural machinery

• Construction and off-road equipment

• Industrial and vocational vehicles

• 24V mobile and auxiliary A/C systems
