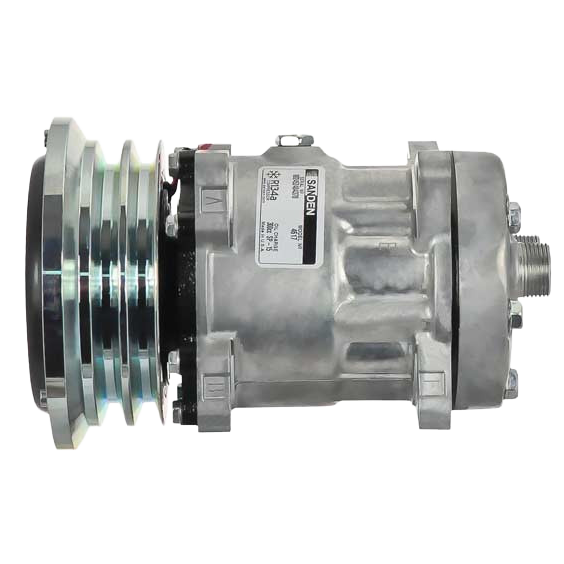

BT5-4617 12V Super Heavy-Duty A/C Compressor – SD7H15-SHD, Ear Mount, 2-Groove 132 mm, MD Head

Description

Overview

The BT5-4617 SD7H15-SHD compressor is engineered for 12V mobile air-conditioning systems commonly used in agricultural, construction, and off-road equipment. Because of its ear 8-long mounting design, the compressor provides enhanced stability in high-vibration applications. At the same time, the dual 1/2-inch belt drive and 132 mm clutch support higher belt loads and improved power transfer.

Additionally, this unit uses an MD-style cylinder head with horizontal Tube-O fittings, allowing for clean hose routing in both OEM and aftermarket installations. As a result, it integrates easily into replacement and retrofit systems. Furthermore, its clockwise rotation and simple electrical interface ensure compatibility with standard heavy-duty A/C control circuits.

---

Key Features

• 12-volt Super Heavy-Duty A/C compressor

• SD7H15-SHD compressor platform

• Ear 8-long mounting configuration

• Dual-groove clutch for two 1/2″ belt systems

• 132 mm clutch diameter

• MD-style cylinder head

• Horizontal Tube-O 1 × 14 fittings

• 1-wire male bullet electrical connector

• Designed for continuous off-road HVAC operation

---

Compressor Specifications

General

• Compressor Family: SD7H15

• Model: SD7H15-SHD

• Style: Super Heavy Duty

• Voltage: 12V

• Refrigerant Type: R134a

• Rotation: Clockwise (CW)

• Displacement: 9.5 cu.in.

• Number of Cylinders: 7

---

Mounting & Drive

• Mounting Style: Ear, 8 Long

• Drive Type: Belt-driven

• Belt Type: Two 1/2″ belts

• Clutch Grooves: 2

• Clutch Diameter: 132 mm

• Shaft Type: Long key shaft

---

Head & Fittings

• Head Type: MD

• Fitting Port Position: Horizontal

• Fitting Style: Tube-O 1 × 14

---

Oil Specifications

• Oil Type: PAG100

• Factory Oil Charge: 300 cc

---

Electrical Specifications

• System Voltage: 12V

• Wire Type: 1-wire male bullet

• Diode Protection: None

---

Service & Replacement Components

• Replacement Clutch Assembly: 5057D

• Replacement Head Assembly: 5632

---

Interchange / Cross-Reference Numbers

• BTRAC: BT5-4617

• MEI: 5717

• Sanden: 4617

• Alliance: 304303

• CoolStar: 330-1608

• Industry ID: 20-09965

• Kysor: 1410035

• Truck Air: 03-3491

Additional Interchange References:
1401367, 232-9272, 300-4552, 4379-RD5102910, 4379-RD5102910P, 58642, 75R84532, 86001191, 97005764, 9704118, 9705764, ABP N83 304303, ACC2608, RDHRD5102910P, RDT75R84532, QP7H15-4617

---

Typical Applications

• Agricultural machinery

• Construction and off-road equipment

• Industrial and vocational vehicles

• 12V mobile and auxiliary A/C systems
