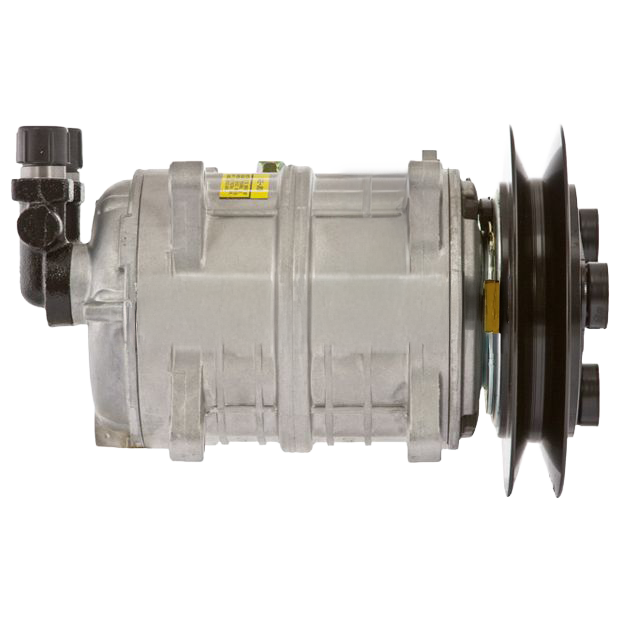

BT5-46061 24V TM16HD A/C Compressor – Ear Mount, Single-Groove 159mm, C Head

Description

Overview

The BT5-46061 TM16HD compressor is engineered for 24-volt mobile air conditioning systems that require a durable ear-mount design and consistent belt alignment. Because of its large-diameter 159 mm clutch, the compressor supports stable belt engagement in single variable-groove drive systems commonly used on heavy-duty trucks and specialty equipment.

Additionally, this unit uses a C-style rear head with vertical O-ring ports, which allows for clean hose routing in both OEM and aftermarket installations. As a result, it integrates easily into replacement and retrofit systems. Furthermore, its simple 1-wire electrical interface ensures compatibility with standard heavy-duty A/C control circuits.

---

Key Features

• 24-volt heavy-duty A/C compressor

• TM16HD compressor platform

• Ear-mount configuration

• Single variable-groove clutch

• 159 mm clutch diameter

• C-style rear head

• Vertical 3/4″ × 7/8″ O-ring fittings

• Designed for continuous mobile HVAC operation

---

Compressor Specifications

General

• Compressor Type: TM16HD

• Manufacturer: Valeo / Seltec

• Voltage: 24V

• Refrigerant Type: R134a

---

Mounting & Drive

• Mounting Style: Ear mount

• Drive Type: Belt-driven

• Clutch Grooves: 1 (Variable Groove)

• Clutch Diameter: 159 mm

• Hub Type: LS

---

Head & Fittings

• Head Type: C

• Fitting Angle / Type: Vertical O-ring

• Fitting Size: 3/4″ × 7/8″

---

Electrical Specifications

• System Voltage: 24V

• Wire Type: 1-wire bullet connector

---

Interchange / Cross-Reference Numbers

• BTRAC: BT5-46061

• Valeo OEM: 488-46061, 10056061, 10356061

Aftermarket & Supplier Cross References

• Texas Truck A/C: 300-6670

• ICE: 2521192

• Red Dot (Aftermarket): 75R8634

• Red Dot (Factory): RD-5-7165-0

• Seltec / Valeo: 488-46061

• TruckAC+: T4809

• TTA/C: 50-4092

Additional Interchange Numbers

103-56061, 1403164, 20-46061, 3222324583, 435-56061, 4379-RD571651P, 75R8634Q, ABP N83 304045Q, CO 4661DKI, QP16-1192, RDHRD571651P, RDT75R8634Q

---

Typical Applications

• Heavy-duty on-highway trucks

• Fleet and vocational vehicles

• Industrial and municipal equipment

• OEM and replacement mobile HVAC systems
