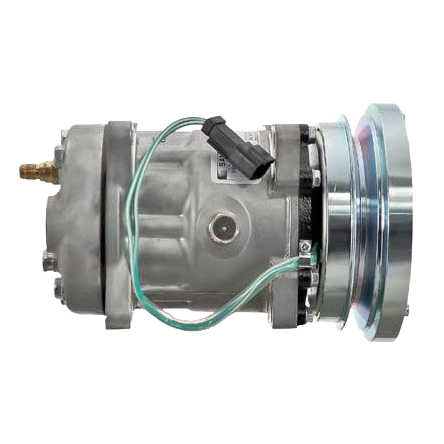

BT5-4604 24V Super Heavy-Duty A/C Compressor – SD7H15-SHD, Ear Mount, 1-Groove 138.5mm, GK Head

Description

Overview

The BT5-4604 SD7H15-SHD compressor is engineered for 24-volt heavy-duty mobile air conditioning systems, particularly in agricultural, construction, and off-road equipment where durability and vibration resistance are critical. Because of its ear 8-long mounting design, the compressor provides enhanced stability in harsh operating environments. At the same time, the single-groove, 138.5 mm clutch supports reliable belt engagement in traditional 1/2-inch belt drive systems.

Additionally, this unit uses a GK-style rear horizontal pad head with O-ring sealing, which allows for clean hose routing in both OEM and aftermarket installations. As a result, it integrates easily into replacement and retrofit systems. Furthermore, its clockwise rotation and Deutsch electrical connection ensure compatibility with modern heavy-duty electrical systems.

---

Key Features

• 24-volt Super Heavy-Duty A/C compressor

• SD7H15-SHD compressor platform

• Ear 8-long mounting configuration

• Single-groove clutch for 1/2″ belt systems

• 138.5 mm clutch diameter

• GK-style cylinder head

• Rear horizontal O-ring pad fittings

• Deutsch 2-wire electrical connector

• Designed for continuous off-road HVAC operation

---

Compressor Specifications

General

• Compressor Family: SD7H15

• Model: SD7H15-SHD

• Style: Super Heavy Duty

• Voltage: 24V

• Refrigerant Type: R134a

• Rotation: Clockwise (CW)

• Displacement: 9.5 cu.in.

• Number of Cylinders: 7

---

Mounting & Drive

• Mounting Style: Ear, 8 Long

• Drive Type: Belt-driven

• Belt Type: 1/2″ belt

• Clutch Grooves: 1

• Clutch Diameter: 138.5 mm

• Shaft Type: Long key shaft

---

Head & Fittings

• Head Type: GK

• Fitting Port Position: Horizontal

• Fitting Style: Rear horizontal O-ring pad

• O-Ring #1: 0121

---

Oil Specifications

• Oil Type: PAG100

• Factory Oil Charge: 300 cc

---

Electrical Specifications

• System Voltage: 24V

• Wire Type: 2-wire Deutsch #DT04-2P-E

• Diode Protection: None

---

Service & Replacement Components

• Replacement Clutch Assembly: 5119

• Replacement Head Assembly: 5602

---

Interchange / Cross-Reference Numbers

• BTRAC: BT5-4604

• MEI: 5391

• Sanden: 4468, 4604, 4656

• Alliance: 304714

• Caterpillar: 101-1759, 101-1795, 134-3997, 3E1906

• CoolStar: 330-3215

• DTAC: 01-05604

• Industry ID: 20-14604

• Kysor: 1401139

• Truck Air: 03-3729

Additional Interchange References:
1401467, 1410061, 20-04603, 265-6776, 300-5094, 300-5100, 402290, 4379-RD5112400, 4379-RD5112400P, 4468SAN, 5391, 58768, 75R81184, 8107, ABP N83 304714, ACC4215, RDHRD5112400P, RDT75R81184

---

Typical Applications

• Agricultural equipment

• Construction and off-road machinery

• Industrial and vocational vehicles

• 24V mobile and auxiliary A/C systems
