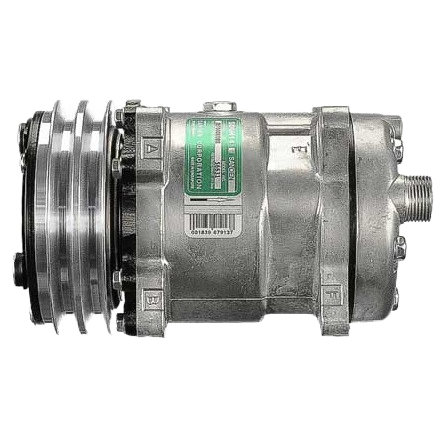

BT5-4513 Compressor – Sanden SD5H14 12V R134a, 132mm 2-Groove Clutch, M Head

Description

Product Description

The BT5-4513 compressor is built on the proven Sanden SD5H14 platform, a compact 5-cylinder design widely used in truck, bus, and specialty vehicle HVAC systems.

This unit operates on 12 volts and is factory charged with 175cc of PAG100 oil for R134a refrigerant systems. The M-style cylinder head uses Tube-O (1 × 14) fittings with horizontal port orientation, supporting clean hose routing in a wide range of applications.

A 132mm 2-groove clutch, designed for two 1/2″ belts, provides dependable torque transfer. The ear 8 long mounting configuration, SD5 keyed shaft, and bi-directional rotation (CW / CCW) make this compressor a flexible replacement option across multiple OEM platforms.

---

Key Features

• Sanden SD5H14 compressor platform

• 12V operation for mobile HVAC systems

• 5-cylinder design with 8.4 cu. in. displacement

• M head with Tube-O (1 × 14) fittings

• 132mm 2-groove clutch for dual 1/2″ belts

• Ear 8 long mounting configuration

• Bi-directional rotation (CW / CCW)

• Direct substitute for discontinued Sanden 5926

---

Essential Specifications

• BTRAC SKU: BT5-4513

• Product Name: Compressor

• Compressor Family: SD5H14

• OE Sanden Part Numbers: 4513, 4517

• Substitutes Discontinued Part: Sanden 5926

• Application: Multi-Fit Applications

• Refrigerant Type: R134a

• Voltage: 12V

• Rotation: CW / CCW

• Number of Cylinders: 5

• Displacement: 8.4 cu. in.

• Mounting Type: Ear 8 Long

• Shaft Type: SD5 Keyed Shaft

• Head Type: M

• Fitting Style: Tube-O (1 × 14)

• Fitting Port Position: Horizontal

• Clutch Diameter: 132mm

• Number of Grooves: 2

• Belt Type: Two 1/2″ Belts

• Factory Oil Charge: 175cc

• Oil Type: PAG100

• Wire Type: 1-Wire Male Bullet

• Diode Protection: None

---

Service & Seal Information

• Replacement Clutch Assembly: 5057

• Replacement Head Assembly: 5631

---

Cross References / OEM Numbers

Sanden

• 4513

• 4517

• 6631

MEI / AirSource

• 5703

Alliance

• ABP N83 304422

CoolStar

• 330-1408

DTAC

• 01-05513

Eagle / JBAR

• 450599

Manex

• 03-00780

Truck Air

• 03-3415

• 44635

Texas Truck AC

• 300-4529

• 300-4529A

Red Dot

• 75R8312 (Aftermarket)

• RD-5-7548-0 (Factory)

Omega

• 20-10180

Primatech

• PTAC5703

Additional Industry

• EUCLID IND: E-801150, E-801195

• EVERCO HD: 967015

• FREIGHTLINER: SKI4513

• KYSOR: 1401348

• NDNS: ABPN83304422

• ROADFORCE: RF999999949

• TRUCKAC+: T4573

• TTA/C: 50-5512

---

Applications

• Medium- and heavy-duty truck HVAC systems

• Agricultural and industrial equipment

• Specialty and fleet vehicles

• 12-volt R134a mobile air conditioning systems
