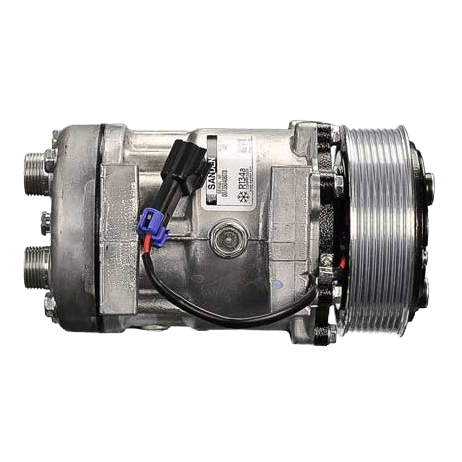

BT5-4482 12V Heavy-Duty A/C Compressor – SD7H15HD, Direct Mount, 8-Groove 119mm

Description

Overview

The BT5-4482 SD7H15HD compressor is designed for 12V heavy-duty mobile HVAC systems, particularly those used in Freightliner trucks. Because of its direct long-mount design, the compressor provides rigid installation and improved stability under vibration and sustained load. At the same time, the 8-groove, 119 mm clutch ensures dependable belt engagement on modern high-accessory diesel engines.

Additionally, this unit uses an MDA-style cylinder head with horizontal Tube-O 1 × 14 fittings, which allows for OEM-correct hose routing and clean integration into existing systems. As a result, it installs easily in both replacement and retrofit applications. Furthermore, clockwise rotation and a 2-wire female Packard connector ensure compatibility with standard heavy-duty A/C control circuits using R134a refrigerant.

---

Key Features

• 12-volt heavy-duty A/C compressor for on-highway HVAC systems

• SD7H15HD compressor platform

• Direct long-mount configuration

• 8-groove serpentine clutch for high-load belt systems

• 119 mm clutch diameter for stable belt engagement

• MDA cylinder head for Freightliner applications

• Horizontal Tube-O fittings (1 × 14)

• Clockwise rotation for standard system compatibility

• Designed for continuous mobile HVAC operation

---

Compressor Specifications

General

• Compressor Family: SD7H15

• Model: SD7H15HD

• Style: Heavy Duty (HD)

• Voltage: 12V

• Refrigerant Type: R134a

• Rotation: Clockwise (CW)

• Displacement: 9.5 cu.in. (155 cc)

• Number of Cylinders: 7

---

Mounting & Drive

• Mounting Style: Direct, Long

• Drive Type: Belt-driven

• Belt Type: Serpentine

• Clutch Grooves: 8

• Clutch Diameter: 119 mm

• Shaft Type: Long Key Shaft

---

Head & Fittings

• Head Type: MDA

• Fitting Port Position: Horizontal

• Fitting Style: Tube-O

• Fitting Size: 1 × 14

---

Oil Specifications

• Oil Type: PAG100

• Factory Oil Charge: 300 cc

---

Electrical Specifications

• System Voltage: 12V

• Wire Type: 2-Wire Female Packard

• Connector Part Number: 15300002

• Wire End: T5D

• Diode Protection: Integrated

---

Service & Replacement Components

• Replacement Clutch Assembly: 5137

• Replacement Head Assembly: 5632A

---

Interchange / Cross-Reference Numbers

• BTRAC: BT5-4482

• MEI: 5331

• Alliance: 304113, 304553, 304772, 304793

• Bergstrom: 1000042346

• Carrier: 18-00093-04

• CoolStar: 330-2012

• DTAC: 01-05482

• Industry ID: 20-04776

• Kysor: 1401130, 1401399, 1410023, 402064

• Murray: 275064

• Navistar: 2603064C91, 2603064-C91

• Sanden: 4421, 4482, 4776

• Truck Air: 03-0607

• OEM: ABP N83 304113

Additional Interchange References:
232-9249, 300-4578, 300-4583, 402064, 4379-RD5102670, 4379-RD5102670P, 58710, 75R84232, 85100876, ABP N83 304553, ACC3012, RDHRD5102670P, RDT75R84232, SKI4776, ZGG705022

---

Typical Applications

• Freightliner on-highway trucks

• Heavy-duty fleet and vocational vehicles

• OEM and replacement mobile HVAC systems

• High-accessory-load diesel applications
