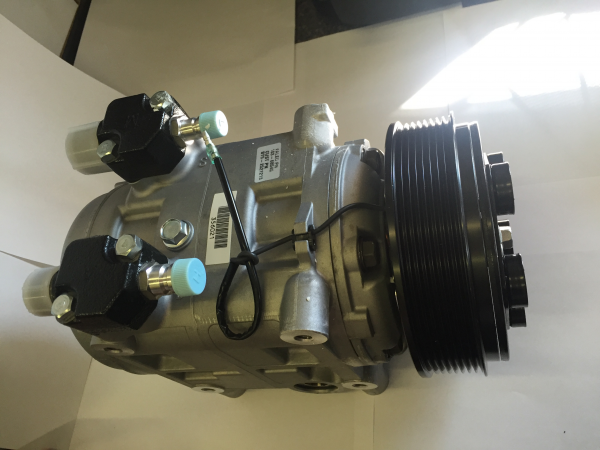

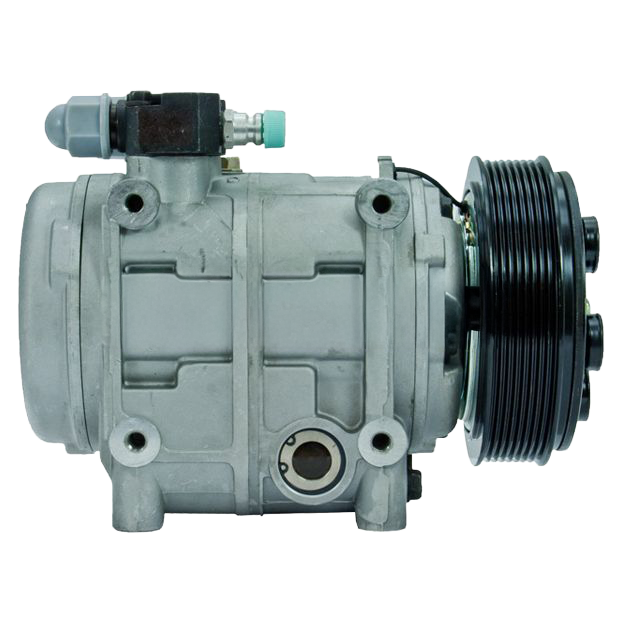

BT5-2521213 Heavy-Duty A/C Compressor – TM-16HD, 24V, PV8

Description

The BT5-2521213 A/C compressor is built for heavy-duty mobile air-conditioning systems that demand consistent cooling and long service life. Because it uses the proven TM-16HD compressor platform, it delivers stable refrigerant flow during continuous operation.

In addition, this compressor uses a direct-mount configuration, which simplifies installation and supports proper alignment in OE brackets. As a result, installation time is reduced while fitment accuracy improves.

Furthermore, the horizontal O-ring fitting layout allows clean hose routing and helps minimize leak points. Therefore, system reliability improves under high thermal load and extended duty cycles.

The BT5-2521213 operates on a 24-volt electrical system and includes a PV8 clutch with a 119 mm diameter. Because of this design, it delivers smooth belt engagement and dependable power transfer across a wide range of operating conditions.

---

Specifications

General

• BTRAC Part Number: BT5-2521213

• Compressor Type: TM-16HD

• Application Type: Heavy-Duty Mobile HVAC

• Refrigerant Type: R134a

Mounting & Head

• Mount: Direct

• Back Head: F

• Fitting Size: 3/4″ × 7/8″

• Fitting Angle / Type: Horizontal O-Ring

Clutch & Drive

• Hub Type: 3E

• Clutch Grooves: PV8

• Clutch Diameter: 119 mm

Electrical

• Voltage: 24 V

• Lead Wire: 1 Bullet

Oil

• Oil Amount: 180 cc

---

Cross Reference Numbers

• Texas Truck A/C: 300-6917

• AirSource / MEI: 5806T

• ICE: 2521665

• Omega: 20-46459-Q

• Primatech: PTAC5806T

• Seltec / Valeo: 103-56459

• Truck Air / MEI: 03-3285T

• TruckAC+: T4912

---

Applications & Notes

• Heavy-duty trucks and vocational equipment

• Mobile HVAC systems using TM-16HD compressors

However, always confirm mounting configuration, belt alignment, and electrical requirements before installation to ensure proper system performance.
