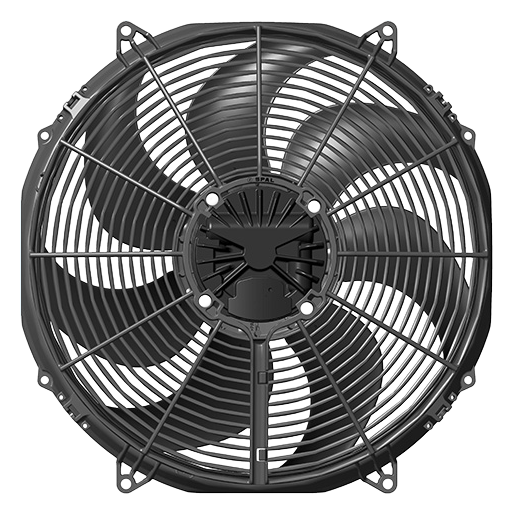

BT3-0201 Brushless Fan – 15″ 24V

Description

The BTRAC BT3-0201 brushless fan supports 24-volt mobile HVAC and cooling applications that demand high airflow, durability, and precise speed control. It is based on the SPAL VA91 – BBL341P/N platform and uses a sealed brushless motor with integrated electronics. As a result, it provides stable performance across a wide range of operating conditions.

Because the fan uses a brushless design, it runs efficiently and quietly while extending service life. In addition, the PWM / E digital input allows accurate speed control, which helps match airflow to system demand. Therefore, the fan performs well in condenser, radiator, and HVAC modules where airflow varies with load.

The 15-inch (Ø385 mm) axial blade moves high air volume, even under pressure. Meanwhile, the integrated protections—including over-current, over-temperature, and reverse-polarity—help protect the fan and the vehicle electrical system. Furthermore, the sealed construction supports IP6K9K and IP68 protection, which improves reliability in harsh environments.

Overall, the BT3-0201 is a dependable solution for trucks, buses, and off-highway equipment that require 24-volt, PWM-controlled brushless cooling.

---

Specifications

Electrical

• Nominal Voltage: 24V DC

• Operating Voltage Range: 16.0–32.0 V

• Max Speed Voltage: 26.0–32.0 V

• Control: Digital PWM / E (speed control)

• Feedback Output: FO (active high)

Fan & Motor

• Fan Type: Axial, brushless

• Fan Diameter: Ø385 mm (≈15 in)

• Rotational Speed Range: 800–2570 RPM

• Startup Ramp Time: ~11 s

• Noise Level: 76.7 dBA (measured at 1 m)

Performance (Test Conditions)

• Test Voltage: 26.0 V

• Air Density: 1.175 kg/m³

• Reference Speed: ~2570 RPM

Mechanical

• Approximate Weight: 2.4 kg (5.3 lb)

• Mounting: 4 mounting holes (see drawing)

Environmental & Protection

• Operating Temperature: −40 to +120 °C

• Storage Temperature: −40 to +125 °C

• Sealing: IP6K9K and IP68

• Protections: Over-current, over-voltage, under-voltage, reverse polarity, thermal derating

---

Cross Reference Numbers

• SPAL Part Number: 30107106

• Platform / Datasheet: VA91 – BBL341P/N – 65A

---

Applications & Notes

• Designed for 24-volt mobile HVAC and cooling systems

• Brushless motor supports long service life (up to ~40,000 hours depending on duty cycle)

• PWM speed control enables precise airflow management

• Suitable for condenser, radiator, and HVAC module cooling

• Always verify airflow direction, PWM compatibility, and mounting before installation
