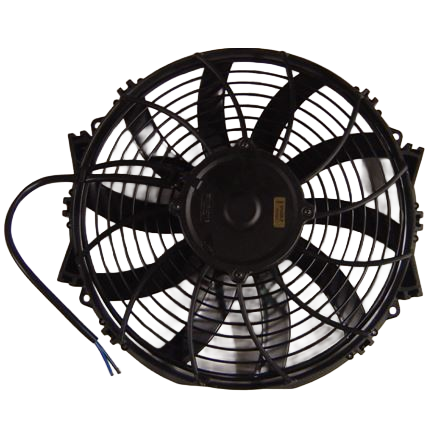

BT3-0153 Fan – 12 Inch Reversible, 12V

Description

The BTRAC BT3-0153 axial fan is engineered for mobile HVAC and equipment cooling systems operating on 12-volt electrical platforms. It is based on the Maradyne Champion Series M123K platform and uses a 12-inch low-profile axial design to deliver high airflow while keeping installation depth to a minimum.

Because the fan is reversible, it can operate as either a pusher or a puller, depending on the application. As a result, it adapts easily to condenser, radiator, and auxiliary cooling layouts. In addition, the quiet S-Blade fan design is dynamically balanced, which helps reduce vibration and operating noise during continuous duty.

The fan uses a long-life sealed motor rated IP68, protecting it from dust and water intrusion in extreme environments. Therefore, it performs reliably in on-highway trucks, off-highway equipment, and vocational vehicles exposed to moisture, debris, and vibration.

Furthermore, the BT3-0153 delivers 1,155 CFM at zero static pressure, while maintaining efficient current draw across increasing static pressure. Because of this balanced performance, it serves as a dependable OEM-style replacement fan for high-demand mobile cooling systems.

---

Specifications

Electrical

• Voltage: 12V DC

• Motor Rating: 130W

• Current Draw: ~7.7 amps

Fan & Performance

• Fan Type: Axial

• Diameter: 12 in

• Airflow (Free Flow): 1,155 CFM

• Direction: Reversible (pusher or puller)

• Blade Design: Quiet S-Blade

Construction

• Motor Type: Long-life sealed motor

• Ingress Protection: IP68 (waterproof & dustproof)

• Balance: Dynamically balanced for smooth, low-noise operation

• Connector: Locking mating pigtail connector (included)

Physical

• Overall Depth: 2.62 in

• Low-Profile Design: Yes

---

Cross Reference Numbers

M123K

---

Included Components

• Locking mating pigtail connector

---

Important Notes

• Designed for 12-volt mobile HVAC and cooling systems

• Reversible operation supports pusher or puller configurations

• IP68-rated sealed motor for extreme environments

• Low-profile design simplifies installation in tight spaces

• Always verify mounting clearance, airflow direction, and electrical compatibility before installation
