BT2-4604 – Electric Water Valve Assembly w/ One-Piece Bracket

Description

Overview

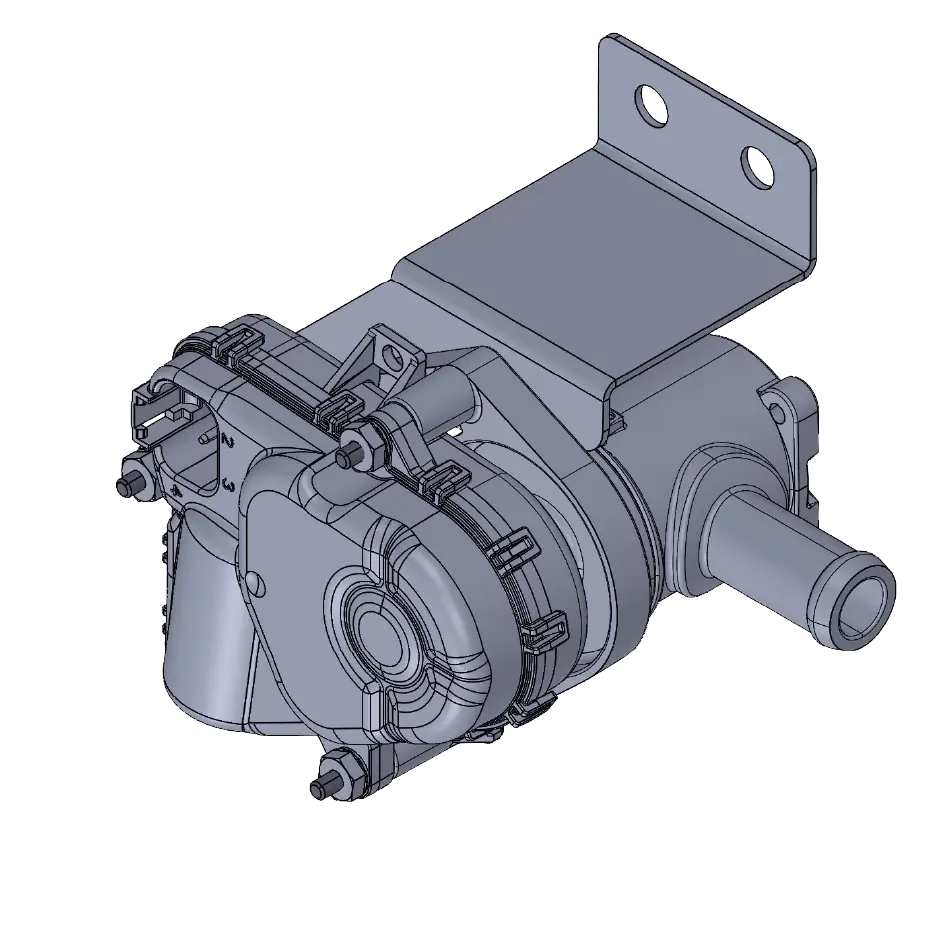

The BT2-4604 Water Valve Assembly is a complete, bracket-mounted solution for controlling coolant flow to heater circuits in mobile and heavy-duty HVAC applications. This assembly is built around the Red Dot RD-1-4604-0 electric water valve, securely mounted to a one-piece steel bracket for simplified installation and consistent hose routing.

By packaging the valve and bracket together, BT2-4604 reduces installation time, improves serviceability, and ensures proper valve orientation in confined engine compartments.

---

Key features

• Electric heater water valve assembly

• Includes Red Dot RD-1-4604-0 water valve

• One-piece mounting bracket included

• Designed to reduce hose interference and improve routing

• Serviceable valve and hardware components

---

Assembly contents (BOM / service parts)

This assembly consists of the following components:

1. RD-1-4604-0 – Electric Water Valve Assembly (Qty 1)

2. BT2-0141 – Bracket, Water Valve (Qty 1)

3. 27271 – Screw, 6-32 Hex Head, 1.5″ (Qty 3)

4. 1137405 – Nut, KEPS 6-32, Zinc (Qty 3)

---

Water valve details

• Valve type: Electric water valve

• Function: Heater coolant shutoff / flow control

• Control: Electrically actuated

• Subcomponent: Red Dot RD-1-4604-0

---

Mounting details

• Integrated one-piece bracket

• Bracket positions valve to minimize hose contact

• Designed for stable mounting in mobile HVAC installations

---

Typical applications

• Cab and sleeper heater systems

• Mobile HVAC heater circuits

• Heavy-duty trucks and vocational vehicles

• Off-highway and industrial equipment
