BT2-2402 – 5/8″ Heater Water Valve Assembly, Pull-to-Open (4-Port)

Description

Overview

The BT2-2402 Water Valve Assembly is a pull-to-open heater control valve engineered for mobile and heavy-duty HVAC applications. When actuated by a control cable or linkage, the valve opens to allow coolant flow through the heater circuit. When released, the valve closes, restricting flow and reducing cab heat.

This mechanical design offers simple, reliable operation without electrical power, making it ideal for harsh environments and service-friendly installations.

---

Key features

• Pull-to-open mechanical water valve

• 5/8″ heater hose size

• Four (4) 5/8″ flared hose fittings

• Normally closed when not actuated

• Cable-actuated design (manual or mechanical control)

• Integrated mounting bracket for secure installation

---

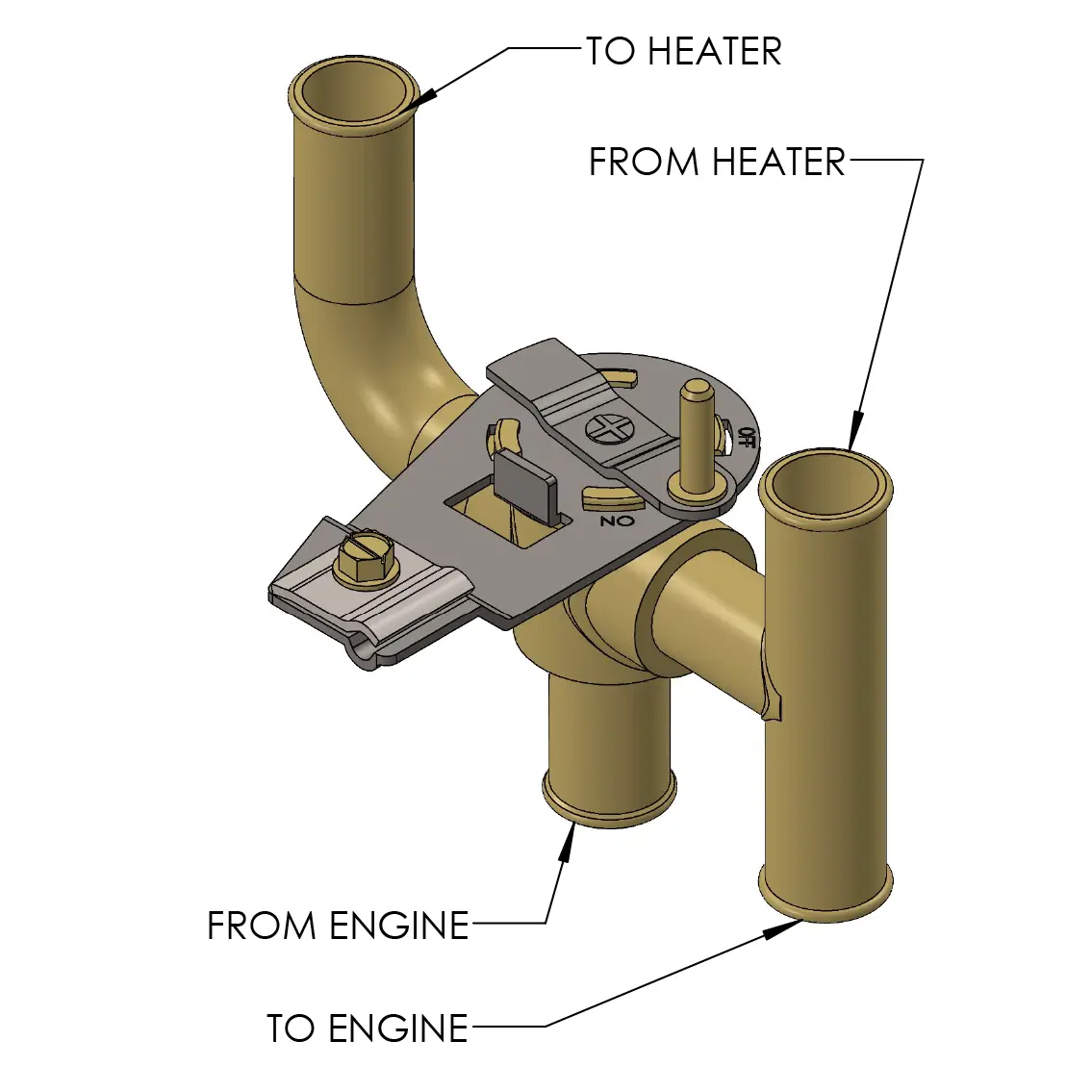

Port configuration

• From Engine

• To Heater

• From Heater

• To Engine

Dimensions (from engineering drawing)

• Overall width: 3.62 in

• Overall height: 2.56 in

• Vertical offsets: 1.89 in / 1.56 in

• Lower port offset: 1.66 in

• Mounting hole diameter: Ø 0.18 in

---

Specifications

• Valve type: Pull-to-open, mechanical

• Default position: Closed

• Hose size: 5/8″

• Connection type: Flared fittings

• Number of ports: 4

• Application: Heater coolant flow control

• Mounting: Bracket-mounted

---

Typical applications

• Mobile HVAC heater systems

• Heavy-duty trucks and vocational vehicles

• Off-highway and construction equipment

• Mechanical cable-controlled cab heating systems
