Coyote 2.7″ Sonora Louver Front Panel with Snap-In Retainer Kit (BT2-1090)

Description

Overview

The Coyote BT2-1090 Sonora Louver Kit provides the Sonora’s compact 2.7″ airflow performance in a convenient snap-in configuration.
Because it combines the front panel (06-2022-F) with a locking snap-in retainer (06-2022-06), it installs securely in any standard panel cutout.
This setup offers the same professional airflow control as the threaded models but with faster, tool-free installation.
In addition, its low-profile design creates a clean, finished appearance that fits seamlessly into modern HVAC panels.

---

Function and Performance

This Sonora Louver Kit directs airflow evenly through precision-curved vanes to minimize turbulence and noise.
The snap-in retainer holds the louver tightly in place, preventing movement under vibration.
As a result, airflow remains steady and quiet, even in mobile or industrial environments.
In addition, the adjustable vent face lets users fine-tune air direction to improve comfort and circulation.

---

Durability and Design

Coyote molds both the front louver (06-2022-F) and retainer (06-2022-06) from impact-resistant black ABS plastic.
Because the parts are precision-fit, the assembly forms a secure, airtight connection without adhesives or hardware.
The satin-black finish gives the louver a professional OEM look that complements other HVAC components.
In addition, the smooth airflow channel promotes efficiency and helps prevent dust accumulation inside the vent.

---

Installation

Installation takes only minutes.

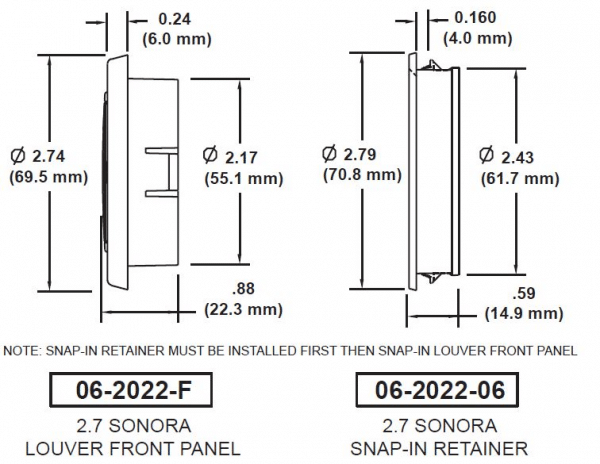

Insert the Snap-In Retainer (06-2022-06) into the panel cutout, then press the Sonora Front Panel (06-2022-F) into place until it locks securely.
No tools or screws are required.
Because of its friction-fit design, it stays stable even under heavy vibration.
In addition, the assembly can be removed easily for cleaning or replacement.

---

Applications

The Coyote BT2-1090 Sonora Louver Kit is used in buses, RVs, trucks, off-road equipment, and industrial HVAC systems.
It’s ideal for dash vents, control panels, and interior HVAC housings that require adjustable airflow in compact spaces.
Because of its snap-in design, it’s also popular in OEM production and retrofit projects where quick installation is essential.

---

Included Components

---

Specifications

• Series: Sonora Louvers

• Kit Number: BT2-1090

• Included Parts: 06-2022-F and 06-2022-06

• Face Diameter: 2.7″ (68.6 mm)

• Mounting Style: Snap-in retainer

• Material: Black ABS plastic

• Applications: Bus, RV, truck, off-road, and industrial HVAC

• Features: Adjustable airflow, snap-in installation, compact size, durable construction
