BT2-0134 – Electric Water Valve Assembly w/ Bracket (CCW to Open)

Description

Overview

The BT2-0134 Water Valve Assembly is a bracket-mounted electric heater valve designed for mobile and heavy-duty HVAC applications requiring CCW (counter-clockwise) actuation to open. This assembly uses the proven Red Dot RD-1-4604-0 water valve, secured to a custom BTRAC bracket, ensuring proper orientation, hose clearance, and reliable operation.

This configuration is ideal for installations where valve actuation direction and bracket geometry are critical for system layout and serviceability.

---

Key features

• Electric heater water valve assembly

• CCW (counter-clockwise) to open configuration

• Includes Red Dot RD-1-4604-0 electric water valve

• Includes dedicated BTRAC mounting bracket

• Designed to improve hose routing and installation consistency

---

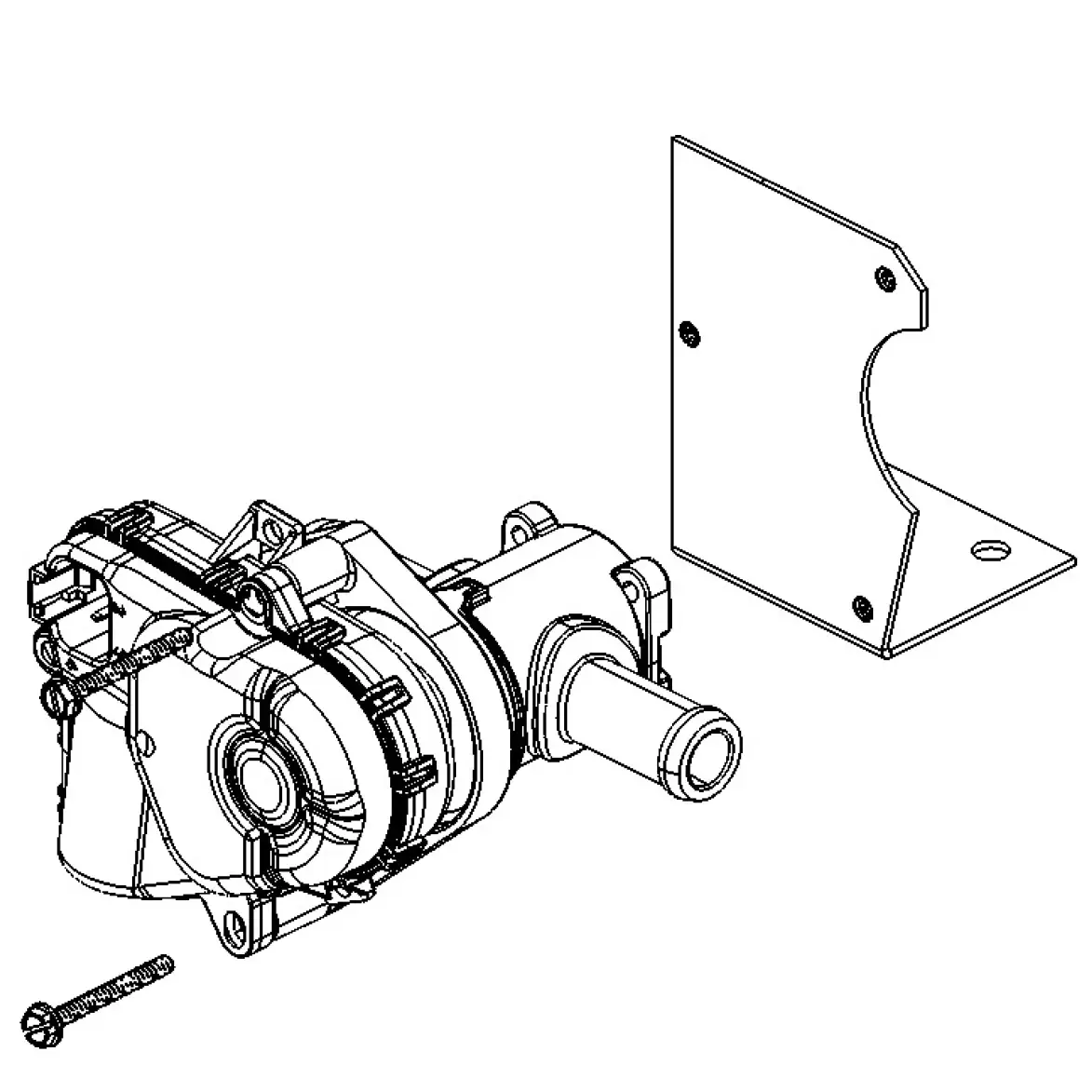

Assembly contents (BOM / service parts)

This assembly includes:

1. BT2-2200 – Bracket, Water Valve (Qty 1)

2. RD-1-4604-0 – Electric Water Valve Assembly (Qty 1)

3. 27270 – Screw, 6-32 Hex Head, 1-1/4″ (Qty 3)

Assembly requires removal of three existing screws from the stock valve and replacement with the supplied fasteners.

---

Water valve details

• Valve type: Electric water valve

• Actuation direction: CCW to open

• Function: Heater coolant shutoff / flow control

• Core valve: Red Dot RD-1-4604-0

• Hose connections: 5/8″ hose barb (x2)

---

Dimensions (from drawing)

• Overall width: 4.84 in

• Overall height: 3.47 in

• Depth: 3.40 in

• Additional offsets: 4.04 in, 2.71 in, 2.13 in, 1.96 in

All dimensions shown in inches.

---

Mounting details

• Bracket-mounted assembly

• Designed to maintain clearance around hose barbs

• Optimized for consistent valve orientation in confined spaces

---

Typical applications

• Cab and sleeper heater systems

• Mobile HVAC heater circuits

• Heavy-duty and vocational vehicles

• Off-highway and industrial equipment

BT2-0134
