BT1-9018-1 Vertical Neo 2 Controller

Description

The BT1-9018-1 Vertical Neo 2 Controller is a vertical-mount HVAC control solution engineered for vehicles and equipment that require integrated heating, ventilation, and air conditioning control. This controller manages a water valve for heating, blower motor speeds, and A/C clutch engagement from a single, intuitive interface.

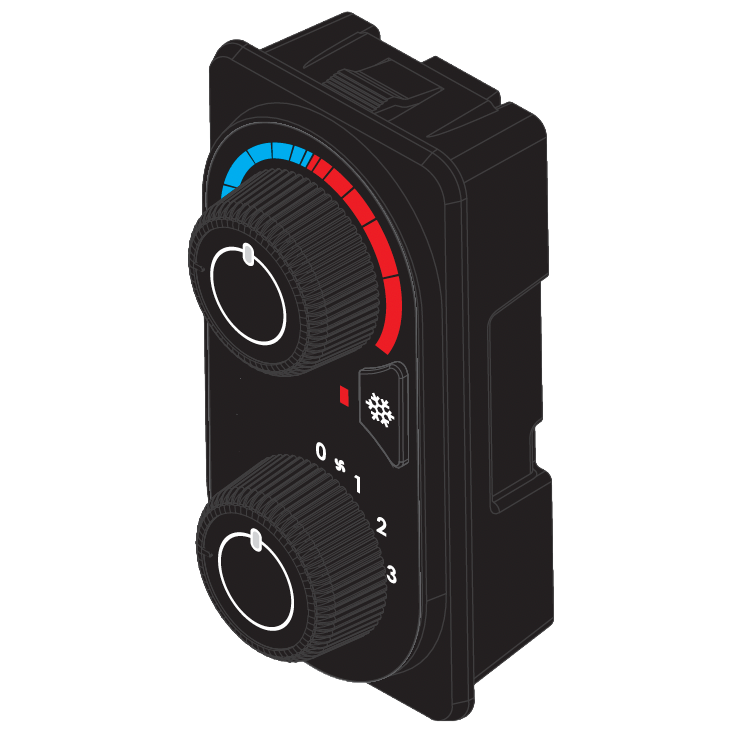

The control panel features:

• A rotary temperature control knob with 22 discrete positions

• A 3-speed blower control knob (Low / Medium / High)

• A dedicated A/C on/off button with LED status indication

At startup, the controller automatically performs a water valve sweep from fully closed to fully open to ensure accurate positioning. A built-in 10-second clutch restart delay protects the A/C system from short-cycling and premature wear.

Designed for durability, the Vertical Neo 2 controller is rated IP54 on the front face and operates reliably in extreme temperatures ranging from -40°F to 184°F, making it ideal for on-highway, off-highway, industrial, and specialty vehicle HVAC applications.

---

Functional Overview

Heating Control

• Controls a PWM water valve output

• 22-step temperature adjustment from fully closed to fully open

• Heating is active when blower speed is engaged and A/C is off

A/C Control

• Dedicated A/C button with LED indicator

  • LED ON: A/C enabled

  • LED OFF: A/C disabled

• Built-in 10-second clutch hysteresis to prevent rapid cycling

Ventilation Control

• Manual blower speed selection via rotary knob:

  • 0: Off

  • 1: Low

  • 2: Medium

  • 3: High

---

Electrical Specifications

• Operating Voltage: 12 VDC or 24 VDC

• Controller Current Draw:

  • 12V: 20 mA

  • 24V: 40 mA

• Maximum Output Loads:

  • Blower motor: 25A

  • A/C clutch: 500 mA

• Power Supply Compatibility: 12V / 24V systems

---

Environmental & Protection Ratings

• Operating Temperature:

  • -40°C to +85°C (-40°F to 184°F)

• Ingress Protection:

  • IP54 (front face)

• Software Version: 1.2

---

Connector & Output Overview

CN1 – Blower & Power

• Blower Low Speed

• Blower Medium Speed

• Blower High Speed

• +12VDC / +24VDC (B+)

• Clutch Enable

CN2 – System Outputs

• Power input (+12V / +24V)

• Water valve PWM output

• A/C clutch control

• Ground

(Uses AMP / TE Connectivity Mate-N-Lock style connectors)

---

Typical Applications

• Mobile HVAC systems

• Construction and agricultural equipment

• Specialty trucks and vocational vehicles

• Industrial cabs and enclosed machinery

• Retrofit or custom HVAC installations
