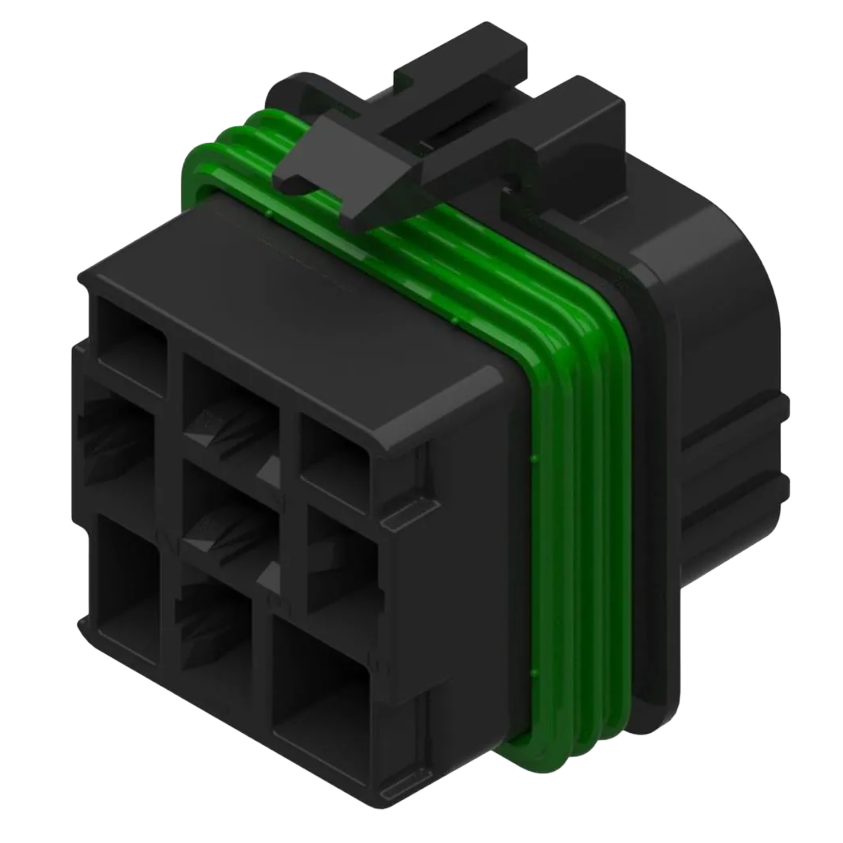

BT1-0513 Connector – 5 Way Female Metri-Pack 630 (Sealed)

Description

The BT1-0513 Connector is part of the Metri-Pack 630 family, engineered for high-current electrical connections in mobile HVAC systems, vocational vehicles, and industrial equipment. Featuring a sealed nylon housing, this connector protects electrical terminals from moisture, dirt, and vibration.

This 5-position female (receptacle) connector uses a crimp termination style, allowing secure and serviceable wire connections. The connector supports up to 46 amps of current and accepts wire sizes up to 12 AWG, making it suitable for demanding electrical loads.

With a wide operating temperature range from -40°C to +125°C, the BT1-0513 performs reliably in extreme cold and high-heat environments commonly encountered in off-highway and on-highway equipment.

---

Electrical Specifications

• Number of Positions: 5

• Gender: Female (Receptacle)

• Current Rating: 46 A

• Wire Gauge (Max): 12 AWG

• Termination Style: Crimp

• Contact Plating: Tin

---

Connector & Construction Details

• Connector Family: Metri-Pack 630

• Number of Rows: 3

• Mounting Style: Cable mount / free-hanging

• Housing Material: Nylon

• Sealing: Sealed design for environmental protection

---

Environmental Ratings

• Maximum Operating Temperature: +125°C

• Minimum Operating Temperature: -40°C

Designed for dependable performance in harsh operating conditions.

---

Physical Dimensions

• Length: 31.5 mm

• Width: 34.7 mm

• Height: 41.3 mm

Compact size allows integration into tight wiring harness layouts.

---

Typical Applications

The BT1-0513 5-Way Metri-Pack Connector is commonly used in:

• Mobile HVAC wiring harnesses

• Heater and A/C electrical systems

• Truck and vocational vehicle power circuits

• Construction and agricultural equipment

• Industrial electrical harness assemblies

---

Product Specifications Summary

• BTRAC Part Number: BT1-0513

• Product Type: Electrical connector

• Positions: 5

• Connector Gender: Female (receptacle)

• Connector Family: Metri-Pack 630

• Current Rating: 46 A

• Wire Size Compatibility: Up to 12 AWG

• Material: Nylon

• Termination: Crimp
