BA8-1224 Frame Filter – 21.19″ × 7.38″ × 1/2″

Description

The BA8-1224 frame filter is a durable aluminum mesh filter designed to provide reliable airflow and long-term performance in mobile HVAC systems. It features expanded aluminum mesh media with aluminum support on both sides, ensuring structural strength while maintaining consistent airflow.

An aluminum track frame surrounds the filter media, providing rigidity and easy installation. This filter is washable and reusable, making it a practical option for equipment requiring frequent service or operation in dusty environments.

Product Specifications

• Part Number: BA8-1224

• Filter Type: Frame Filter

• Overall Width: 21.19″

• Overall Height: 7.38″

• Overall Thickness: 0.50″ (1/2″)

• Media Type: Expanded aluminum mesh

• Media Support: Aluminum support on both sides

• Frame Material: Aluminum track

• Frame Thickness: 0.025″ aluminum track

• Typical Edge Dimension: 0.50″

• Airflow Direction: Marked on filter

Construction Details

• Expanded aluminum mesh filter media

• Aluminum media support on both sides

• Rigid aluminum track frame

• Washable and reusable design

Notes

• Dimensions are in inches

• Do not scale drawing for measurement reference

• Designed for durability in mobile HVAC and equipment applications

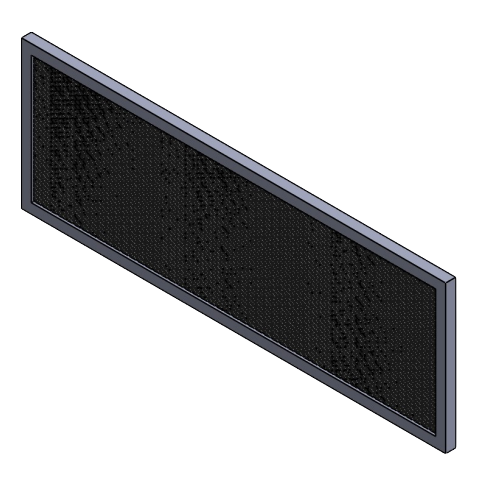

BA8-1224 Drawing
