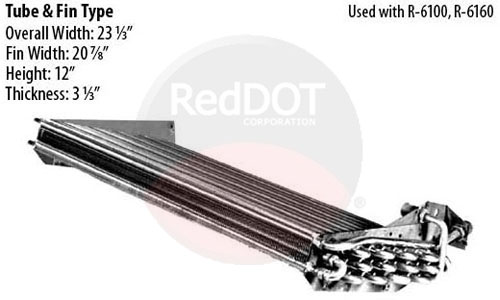

77R0620 A/C Condenser Assembly – Tube & Fin
$427.93
The 77R0620 A/C Condenser Assembly is a tube-and-fin style condenser designed for mobile and heavy-duty air conditioning systems. It delivers reliable heat rejection and durable performance in demanding HVAC applications.
Available on backorder
Description
The BTRAC 77R0620 A/C Condenser Assembly is engineered to provide consistent and dependable heat rejection in mobile HVAC systems. Its tube-and-fin construction promotes steady airflow across the core, which helps remove heat efficiently and maintain stable system pressures during operation.
Because this condenser assembly combines a compact footprint with a robust core, it fits well in applications where space is limited but cooling demand remains high. In addition, the balanced fin layout supports even airflow across the condenser surface. As a result, the system maintains consistent performance during extended run times.
This condenser assembly is commonly used in Red Dot 6100-series and 6160-series condenser applications. These designations identify condenser families and configurations, not refrigerant type. Therefore, refrigerant compatibility should always be confirmed at the system level before installation.
When installed with proper airflow and mounting support, the 77R0620 provides long service life and dependable cooling performance in mobile, fleet, and heavy-equipment HVAC systems.
Construction & Design
-
Tube-and-fin condenser assembly
-
Aluminum construction for effective heat transfer
-
Balanced fin spacing for airflow and durability
-
Designed for mobile and heavy-duty HVAC use
Dimensions
(Confirmed from product image)
-
Overall Width: 23 1/3 in
-
Fin Width: 20 7/8 in
-
Overall Height: 12 in
-
Core Thickness: 3 1/3 in
Application / Series Reference
-
Commonly used in Red Dot 6100-series and 6160-series condenser applications
-
Suitable for mobile, fleet, and heavy-equipment A/C systems
Series references identify condenser families only and do not indicate refrigerant type.
Key Features
-
Tube-and-fin condenser assembly design
-
Compact size for space-limited installations
-
Supports efficient heat rejection
-
Durable construction for mobile HVAC environments
-
Suitable for service replacement and OEM-style applications
Application Notes
The 77R0620 condenser assembly is intended for mobile and heavy-duty HVAC systems that require a tube-and-fin style condenser. Always confirm mounting, airflow, and refrigerant compatibility prior to installation.
Interchange Numbers
04-2672, 232-9608, 350-2405, 400-3882, 4379-RD447380, 4379-RD447380P, 6063, 77R0620, ABP N83 306005, CON2482, E-810148, PA12050, RDHRD447380P, RDT77R0620
Additional information
| Weight | 12 lbs |
|---|---|
| Height | |
| Width | |
| Thickness | |
| Fitting Type | |
| Fitting Location |
