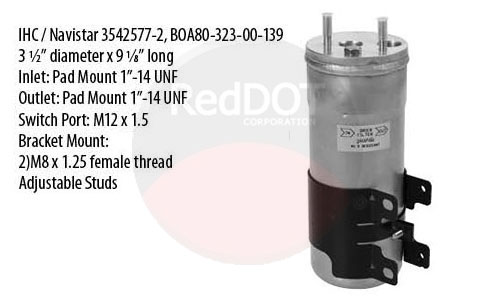

74R5097 A/C Accumulator with Bracket & Switch Port – IHC / Navistar

Description

The BTRAC 74R5097 A/C Accumulator helps protect mobile air conditioning systems by controlling refrigerant flow before it returns to the compressor. It separates liquid refrigerant from vapor and captures moisture. As a result, it helps reduce compressor damage and supports consistent A/C performance.

This accumulator uses pad-mount inlet and outlet connections with 1-1/4″ UNF threads, which allow direct installation into IHC / Navistar HVAC systems designed around manifold-style connections. Because both ports share the same mounting style, installation remains clean and secure.

In addition, the unit includes a dedicated switch port with M12 × 1.5 threads. This feature allows the use of pressure or control switches required by the system. Therefore, the 74R5097 supports both refrigerant management and system monitoring in one compact assembly.

The cylindrical body measures 3-1/2 inches in diameter and 9-1/8 inches in overall length. It also includes a bracket mount with two M8 × 1.25 female threaded adjustable studs, which helps ensure stable mounting in high-vibration environments. Because of this design, the accumulator works well in on-highway and vocational truck applications.

Based on confirmed image details and validated interchange usage, the 74R5097 accumulator is commonly used in IHC® / Navistar® truck platforms.

---

Key Features

• Heavy-duty A/C accumulator for mobile HVAC systems

• Protects the compressor from liquid refrigerant

• Pad-mount inlet and outlet (1-1/4″ UNF)

• Integrated switch port (M12 × 1.5)

• Bracket mount with adjustable studs

• 3-1/2″ diameter × 9-1/8″ length cylindrical body

• Supports proper oil return

• Compatible with R-134a refrigerant

• Designed for IHC® / Navistar® applications

---

Specifications

• Part Number: 74R5097

• Component Type: A/C accumulator

• Body Diameter: 3-1/2 inches

• Overall Length: 9-1/8 inches

• Inlet Connection: Pad mount, 1-1/4″ UNF

• Outlet Connection: Pad mount, 1-1/4″ UNF

• Switch Port: M12 × 1.5

• Mounting Style: Bracket mount

• Bracket Threads: (2) M8 × 1.25 female threaded adjustable studs

• Refrigerant Compatibility: R-134a

• Application Type: Mobile / heavy-duty A/C systems

---

OEM Application Notes

Based on confirmed configuration and validated interchange positioning, the 74R5097 A/C accumulator is commonly used in:

• IHC® / Navistar® on-highway trucks

• Vocational and fleet vehicles

• Mobile A/C systems using pad-mount accumulator designs

• HVAC systems requiring an external pressure or control switch

Applications are confirmed at the system level and are intended for service identification rather than VIN-specific fitment.

---

Interchange Numbers

1913007, 3542577C2, 37-19797, 4379-RD5126230, 4379-RD5126230P, 526333, 7415, 7415G, 74R5097, 810-1205, ABP N83 319159, JC21900, RD5126230P, RDHRD5126230P, RDP1205, RDT74R5097
