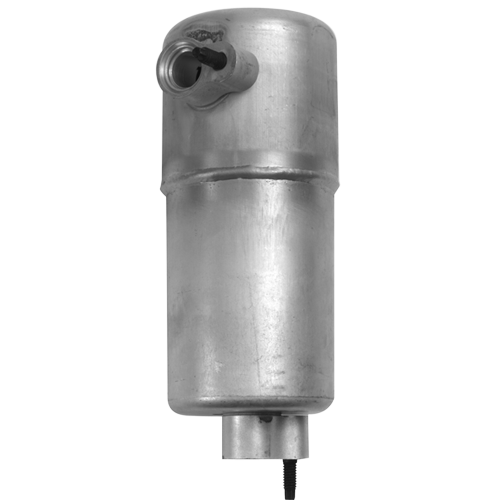

74R5060 Pad-Mount A/C Accumulator – Peterbilt Mobile A/C

Description

The BTRAC 74R5060 A/C Accumulator plays a critical role in mobile air conditioning systems by managing refrigerant flow and protecting the compressor. It traps excess liquid refrigerant and moisture before refrigerant returns to the compressor. As a result, it helps prevent compressor damage and supports consistent system performance.

This accumulator uses a pad-mount inlet and pad-mount outlet, which allows direct installation into Peterbilt HVAC systems designed around manifold-style connections. Because both ports mount directly to the mating pad surface, the design simplifies installation and reduces leak points.

The cylindrical body measures 3-1/2 inches in diameter and 9-1/8 inches in overall length. Therefore, it fits cleanly into tight engine-bay or chassis-mounted A/C assemblies. In addition, the internal design supports proper oil return while separating liquid refrigerant from vapor flow.

Based on confirmed image details and validated interchange usage, the 74R5060 accumulator is commonly used in Peterbilt® truck applications. Because these vehicles often operate under long duty cycles, reliable refrigerant control remains essential for long-term A/C system durability.

---

Key Features

• Heavy-duty A/C accumulator for mobile HVAC systems

• Protects the compressor from liquid refrigerant

• Pad-mount inlet and pad-mount outlet

• 3-1/2″ diameter × 9-1/8″ length cylindrical body

• Compact design for tight installation spaces

• Supports proper oil return

• Compatible with R-134a refrigerant

• Designed for Peterbilt® applications

---

Specifications

• Part Number: 74R5060

• Component Type: A/C accumulator

• Body Diameter: 3-1/2 inches

• Overall Length: 9-1/8 inches

• Inlet Connection: Pad mount

• Outlet Connection: Pad mount

• Refrigerant Compatibility: R-134a

• Application Type: Mobile / heavy-duty A/C systems

---

OEM Application Notes

Based on confirmed configuration and validated interchange positioning, the 74R5060 A/C accumulator is commonly used in:

• Peterbilt® on-highway trucks

• Mobile HVAC systems using pad-mount accumulator designs

• Fleet and vocational vehicles requiring liquid refrigerant control

• A/C systems designed with manifold-style connections

Applications are confirmed at the system level and are intended for service identification rather than VIN-specific fitment.

---

Interchange Numbers

18-04171, 1917004, 1917008, 232-8981, 4379-RD595560P, 4379-RD595561, 4379-RD595561P, 7408, 7408G, 74R5060, 74R5062, 800-2001, 810-1305, 85101000, ABP N83 319069, ABP N83 319072, F31-6063, F37-6063, JC12000, RDHRD595560P, RDHRD595561P, RDP1305, RDT74R5062, ZGG712002
