74R2668 Inline Receiver Drier with Dual Schrader Ports – High-Capacity Mobile A/C

Description

The BTRAC 74R2668 Inline Receiver Drier protects mobile air conditioning systems by removing moisture and debris from the refrigerant circuit. As a result, it helps prevent corrosion, supports stable cooling, and extends compressor life in demanding operating environments.

This receiver drier uses an inline configuration with mixed #6 O-ring fittings, including one male and one female connection. Because of this layout, it integrates easily into HVAC systems that require gender-specific hose connections. In addition, the unit includes two Schrader service ports, which provide flexible access for evacuation, charging, and diagnostics.

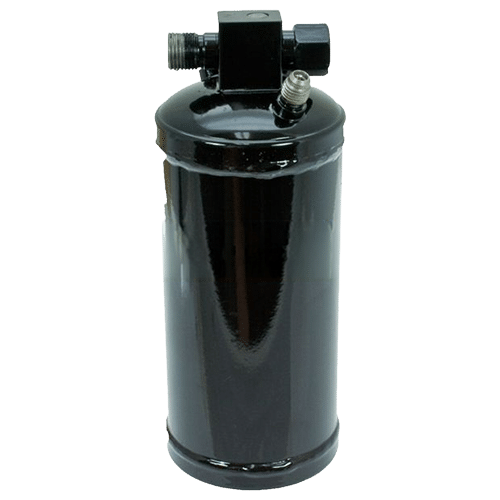

The high-capacity cylindrical body measures 3 inches in diameter and 8-3/8 inches in overall length. Therefore, it provides increased desiccant volume for systems with longer hose runs and higher refrigerant charge. At the same time, the top-mounted pressure-relief feature adds an extra layer of protection during abnormal pressure conditions.

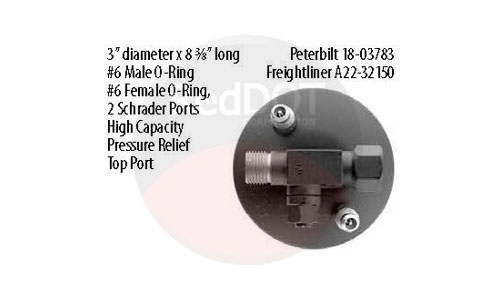

Based on confirmed OEM references shown on the image and validated interchange usage, this receiver drier is commonly used on Peterbilt® and Freightliner® truck platforms. Because these vehicles operate under long duty cycles, the 74R2668 delivers dependable moisture control and service flexibility.

---

Key Features

• Heavy-duty inline receiver drier for mobile A/C systems

• High-capacity design for improved moisture control

• #6 male O-ring inlet

• #6 female O-ring outlet

• Two Schrader service ports for charging and diagnostics

• 3″ diameter × 8-3/8″ length cylindrical body

• Top pressure-relief port

• Compatible with R-134a refrigerant

• Used on Peterbilt® and Freightliner® trucks

---

Specifications

• Receiver Type: Inline receiver drier

• Capacity: High-capacity

• Body Diameter: 3 inches

• Overall Length: 8-3/8 inches

• Inlet Connection: #6 male O-ring

• Outlet Connection: #6 female O-ring

• Service Ports: Two Schrader ports

• Pressure Relief: Top-mounted

• Refrigerant Compatibility: R-134a

• Application Type: Mobile / heavy-duty A/C systems

---

OEM Application Notes

Based on confirmed configuration and validated interchange positioning, the 74R2668 receiver drier is commonly used in:

• Peterbilt® on-highway trucks

• Freightliner® heavy-duty truck platforms

• Fleet and vocational vehicles requiring dual service ports

• Mobile HVAC systems where mixed O-ring fittings are specified

Applications are confirmed at the system level and are intended for service identification rather than VIN-specific fitment.

---

Interchange Numbers

18-03783, 1912001, 1999019, 22-34675, 22-37199-000, 248-8231, 33533, 3949128, 4379-RD5111930P, 540088, 540091, 7135, 7170, 74R2668, 74R3157, 825-4251, A22-37199-000, A22-37199-001, ABP N83 319228, ABP N83 319695, BOA85-945-000-579, BSM319250, F37-6018, JA12050, JA12100, JA12250, JA17400, JA21450, RDHRD5111930P, ZGG11092, ZGG13403, ZGG19148
