74R1956 Inline Receiver Drier with Side-Mounted Trinary Switch – High-Capacity Mobile A/C

Description

The BTRAC 74R1956 Inline Receiver Drier protects mobile air conditioning systems by removing moisture and debris from the refrigerant circuit. As a result, it helps prevent internal corrosion, maintain steady cooling, and extend compressor life in demanding operating environments.

This receiver drier uses an inline configuration with #6 male O-ring fittings, which allows clean integration into common mobile A/C hose layouts. In addition, the unit includes a factory-installed Trinary™ switch mounted on the side, which supports compressor control and system safety by monitoring pressure conditions during operation.

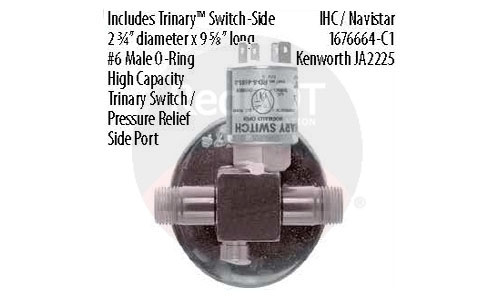

The cylindrical body measures 2-3/4 inches in diameter and 9-5/8 inches in overall length. Therefore, it provides increased desiccant volume while maintaining a compact footprint. At the same time, the side pressure-relief feature adds an extra layer of protection during high-load or high-pressure events.

Based on confirmed OEM references shown on the image and validated interchange usage, this receiver drier is commonly used on International® / Navistar® and Kenworth® truck platforms. Because these vehicles operate under long duty cycles, the 74R1956 delivers reliable moisture control, integrated pressure management, and long-term durability.

---

Key Features

• Heavy-duty inline receiver drier for mobile A/C systems

• High-capacity design for improved moisture control

• #6 male O-ring inlet and outlet

• 2-3/4″ diameter x 9-5/8″ length cylindrical body

• Includes Trinary™ switch (side-mounted)

• Side pressure-relief port

• Compatible with R-134a refrigerant

• Commonly used on International® / Navistar® and Kenworth® trucks

---

Specifications

• Receiver Type: Inline receiver drier

• Capacity: High-capacity

• Body Diameter: 2-3/4 inches

• Overall Length: 9-5/8 inches

• Inlet Connection: #6 male O-ring

• Outlet Connection: #6 male O-ring

• Switch: Trinary™ switch included (side-mounted)

• Pressure Relief: Side-mounted

• Refrigerant Compatibility: R-134a

• Application Type: Mobile / heavy-duty A/C systems

---

OEM Application Notes

Based on confirmed configuration and validated interchange positioning, the 74R1956 receiver drier is commonly used in:

• International® / Navistar® on-highway trucks

• Kenworth® heavy-duty trucks

• Fleet and vocational vehicles requiring integrated Trinary™ switch control

• Mobile HVAC systems where side-mounted pressure management is specified

Applications are confirmed at the system level and are intended for service identification rather than VIN-specific fitment.

---

Interchange Numbers

02-9041020, 04-9041020, 07-2610, 07-2610A, 1-2320, 1676664C1, 176246, 1999022, 208230, 221RD315, 221RD323P2, 232-8922, 25113684, 25113684REVP01, 402261, 406157, 4379-RD546320P, 540235, 61501-0001, 7157, 74R1956, 800-1813, 825-3803, 920033, ABP N83 319234, ABP N83 319310, E-804065, JA11100, PB6475, RD11813, RDHRD546320P, RDT74R1956, ZGG12320
