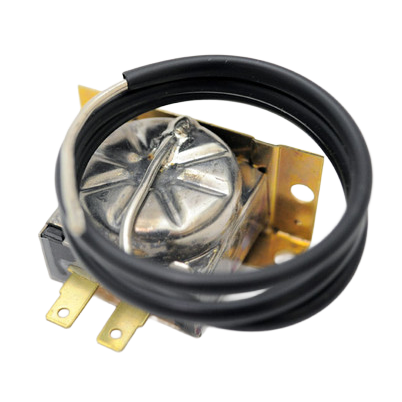

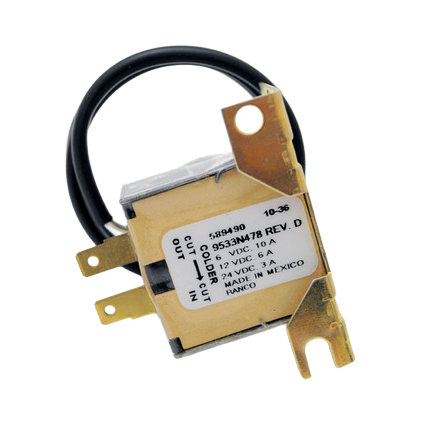

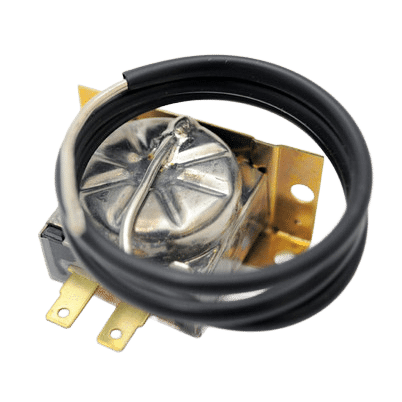

71R3220 Preset Fixed Thermostat, 21″ Capillary (31°F–40°F)

Description

When you want reliable cycling without constant adjustment, a preset thermostat keeps things simple. The Red Dot 71R3220 is a preset fixed setting thermostat designed for mobile HVAC systems that need repeatable temperature control.

It features a 21-inch capillary and a 31°F–40°F temperature range. In addition, the flange base supports common mounting layouts, and the optional side mount helps when space is limited. Use the specs and interchange numbers below to confirm the correct match before ordering.

Product Specifications

• Part Type: Preset Fixed Thermostat (Non-Adjustable)

• Red Dot Part No.: 71R3220

• Factory No.: RD-5-10335-0P

• Capillary Length: 21″

• Temperature Range: 31°F – 40°F

• Mount Hole Spacing: 2 3/16″

• Mounting Style: Flange base with optional side mount

• Note: Optional Side Mount

Cross References

• TEXAS TRUCK AC: 850-9179

• AIRSOURCE – MEI: 1340

• ALLIANCE: ABP N83 323228

• BERGSTROM: 589490

• BLUEBIRD: 90190

• COOLSTAR – MEI: 932-1124

• EUCLID IND: E-807053

• KYSOR: 2399006

• KYSOR – OLD: 404434

• NDNS: ABPN83323228

• RED DOT – AFTERMARKET: 71R3220

• RED DOT – FACTORY: RD-5-10335-0

• ROADFORCE: RF6915894873

• ROADFORCE: RF7566512425

• TRP/CLIMATECH: BD14300

• TRP/CLIMATECH: BD15450

• TRUCK AIR – MEI: 11-1613

• TRUCKAC+: T6712

• TTA/C: 13-4205

Interchange Numbers

• 00090190

• 11-1613

• 1340

• 2318002

• 232-8430

• 2399006

• 3915962

• 3E-5464

• 3E5464

• 404434

• 4379-RD5103350

• 4379-RD5103350P

• 589490

• 71R3220

• 850-9179

• 9533N478

• 9533N522

• ABP N83 323110

• BD14300

• BD15450

• RDH RD5 10335 0

• RDHRD5103350P

• RDT71R3220

• SWI4424

• ZGG71600

• ZGG716001

• ZGG716012
