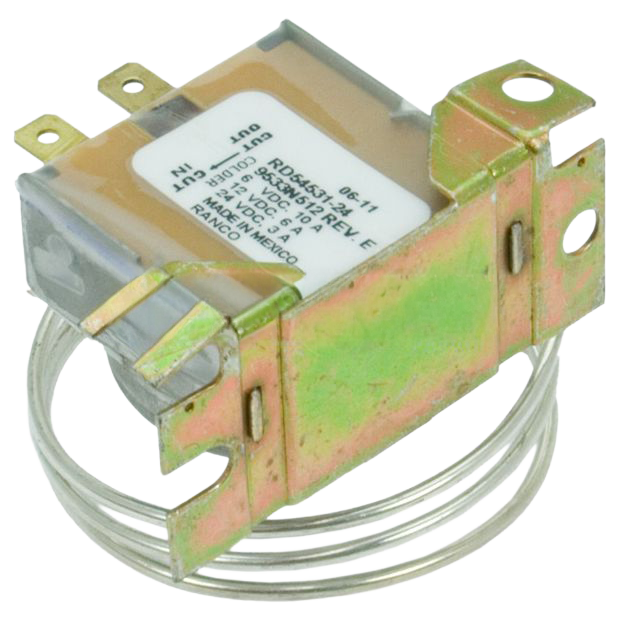

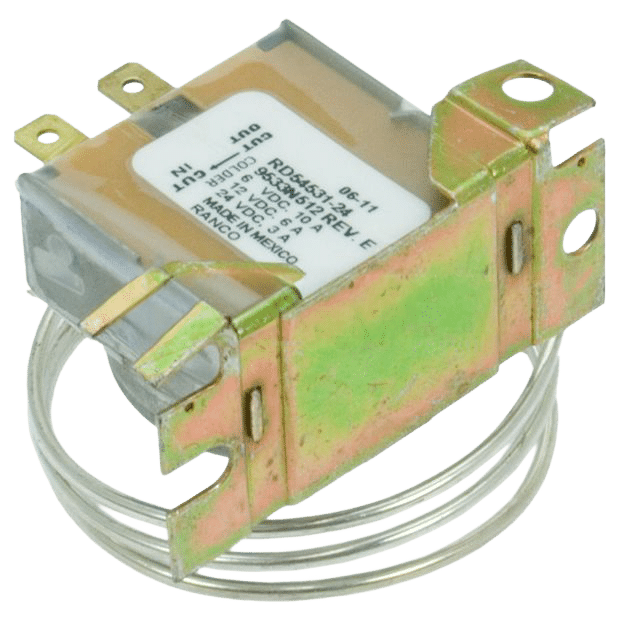

71R3200 Preset Fixed Thermostat, 24″ Capillary (31°F–39°F)

Description

When you need consistent, repeatable cycling, a preset thermostat is a solid choice. The Red Dot 71R3200 is a fixed (preset) thermostat designed for mobile HVAC systems that require a defined temperature range without adjustment.

It uses a 24-inch capillary and operates within a 31°F–39°F temperature range. In addition, it provides an 8°F clutch cycle range, which helps control cycling in a predictable way. The flange base supports standard mounting, and it also offers an optional side-mount configuration based on the application needs.

Use the specs and interchange numbers below to confirm the correct match before ordering.

Product Specifications

• Part Type: Preset Fixed Thermostat (Non-Adjustable)

• Red Dot Part No.: 71R3200

• Factory No.: RD-5-4531-24P

• Capillary Length: 24″

• Temperature Range: 31°F – 39°F

• Clutch Cycle Range: 8°F

• Mount Hole Spacing: 2 1/4″

• Mounting Style: Flange base with optional side mount

Cross References

• TEXAS TRUCK AC: 850-9181

• TEXAS TRUCK AC (alt): 850-9181A

• AIRSOURCE – MEI: 1332

• ALLIANCE: A46-3122-000

• ALLIANCE: A46-3122-030

• ALLIANCE: ABP N83 323010

• AP AIR: 210-936

• BERGSTROM: 323010

• BERGSTROM: 323030

• BERGSTROM: 589490

• BERGSTROM: 650476

• BERGSTROM: 651144

• CATERPILLAR: RD-6-4531-24

• CLIMATECH: BD1095

• CLIMATECH: BD1105

• COOLCAB: 901277

• COOLSTAR – MEI: 932-1132

• DELCO: 15-5294

• DTAC: 03-14013

• EUCLID IND: E-807015

• EUCLID IND: E-807016

• EVANS TEMPCON: RV212093

• FLEETRITE: ZGG716001

• FLEETRITE: ZGG716010

• FORD NEW HOLLAND: 8600262

• FOUR SEASONS: 35863

• FREIGHTLINER: A22-23640-000

• FREIGHTLINER: HV33061

• GM: 3949291

• ISUZU: 1-83579-283-0

• JOHN DEERE: AH144020

• JOHN DEERE: RD-5-4531-24

• KYSOR: 2399003

• KYSOR: 2399014

• KYSOR – OLD: 404157

• KYSOR – OLD: 404239

• MACK: 4379-RD5453124

• MACK: 7979-404145

• MACK: 7979-404157

• MACK: RD5453124

• MOTIVAIR: 30317

• NAVISTAR INTERNATIONAL: 1691722-C91

• NDNS: 1691722C91

• NDNS: A2223640000

• NDNS: ABPN83323010

• OMEGA: 32-20901

• PACCAR: 323010BSM

• PACCAR: 404145

• PACCAR: 58949P

• PACCAR: AM81019

• PACCAR: P93CAA4230-02S

• PRIMATECH: PTAC1332

• RED DOT – AFTERMARKET: 71R3200

• RED DOT – FACTORY: RD-5-4531-24P

• ROAD CHOICE: SWI4322

• ROAD CHOICE: SWI4432

• ROADFORCE: RF370B404768

• TRP/CLIMATECH: BD11050

• TRUCK AIR – MEI: 34639

• TRUCKAC+: T6714

• TTA/C: 13-4202

• WESTERN STAR: 60054-4401

Interchange Numbers

• 03-14013

• 1-4183

• 11-3094

• 1140536C1

• 119-9631

• 1280798

• 1332

• 1536356

• 1676655C91

• 1691722C91

• 1911505421

• 1911512069

• 199-9631

• 2045-897

• 207513

• 207537

• 207542

• 232-8429

• 2399001

• 2399003

• 24191879

• 270-46

• 313010

• 322005BSM

• 323030

• 35863

• 3949291

• 404145

• 404157

• 4379-RD5453124

• 4379-RD5453124P

• 499-5879

• 589490BSM

• 58949P

• 60054-4421

• 71R3200

• 7979-404145

• 7979-404157

• 850-9181

• 8600262

• 86505792

• 925601

• 925625

• 925646

• 9533N357

• A22-23640-000

• A46-3004

• ABP N83 323010

• AH144020

• AM81019

• AT197503

• BD10950

• BD11050

• D3DZ-19618-A

• D3DZ-19681-A

• E-807000

• E-807016

• HV33061

• P93CAA4230-02S

• RD4427-17P

• RD5-4531-24P

• RDHRD5453124P

• RDT71R3200

• RE198074

• SWI4432

• VE0014

• ZGG16001

• ZGG16010
