71R2250 Rotary Variable Thermostat, 36″ Capillary (34°F–52°F Range)

Description

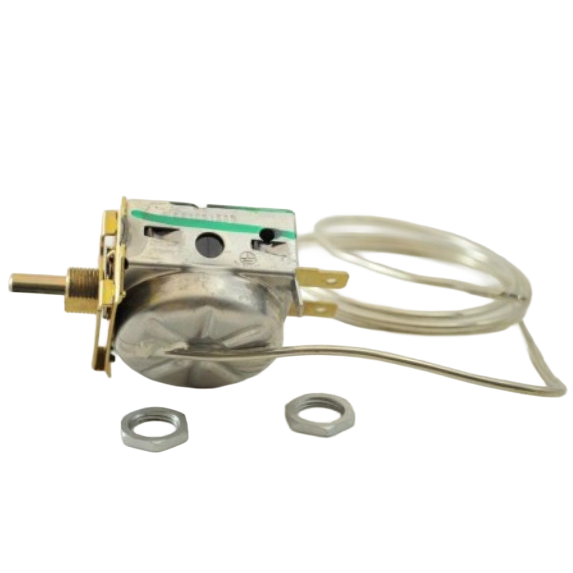

When temperature control needs to stay steady, the thermostat is the key. The Red Dot 71R2250 rotary thermostat is a variable-type control designed with a 36-inch capillary and a 34°F–52°F operating range.

Because it’s a rotary control, it’s easy to adjust, and it supports consistent system cycling. In addition, it provides a 5°F clutch cycle range, which helps maintain stable performance in mobile HVAC systems.

This thermostat is widely cross-referenced across heavy-duty trucks, off-highway equipment, and fleet HVAC systems. Use the specifications and full interchange list below to confirm the correct match.

Product Specifications

• Part Type: Rotary Variable Thermostat

• Control Type: Rotary

• Type: Variable

• Red Dot Part No.: 71R2250

• Red Dot Factory No.: RD-4125-36P

• Capillary Length: 36 in.

• Temperature Range: 34°F – 52°F

• Clutch Cycle Range: 5°F

• Note: RD-4125-36P

Cross References

• TEXAS TRUCK AC: 850-9230

• TEXAS TRUCK AC (alt): 850-9230A

• AIRSOURCE – MEI: 1336

• ALLIANCE: ABP N83 323048

• ALLIANCE: ABP N83 323058

• ALLIANCE: ABP N83 323118

• ALLIANCE: ABP N83 323188

• ALLIS CHALMERS: 1162474-9

• AP AIR: 210-913

• BERGSTROM: 650648

• BERGSTROM: 650654

• BERGSTROM: 651139

• BERGSTROM: 651390

• CASE IH: 168902-C1

• CASE IH: 175575-C91

• CASE IH: F43646

• CATERPILLAR: 2P-4338

• CATERPILLAR: 8P-5346

• CATERPILLAR: 8P-5349

• CLIMATECH: BD1015

• CLIMATECH: BD1330

• CLIMATECH: BD1460

• CLIMATECH: BE1015

• TRP/CLIMATECH: BD10150

• TRP/CLIMATECH: BE10150

• COOLCAB: 901261

• COOLSTAR – MEI: 932-1216

• DELCO: 15-5184

• DEUTZ-ALLIS: 003-4221

• DEUTZ-ALLIS: 003-4619

• DEUTZ-ALLIS: 70272229

• DTAC: 03-14002

• EATON: 9533N422

• EUCLID IND: E-807008

• FIAT-ALLIS: 1162474

• FIAT-ALLIS: 268476

• FIAT-ALLIS: 71162474

• FLEETRITE: ZGG11048

• FORD NEW HOLLAND: 271474

• FOUR SEASONS: 35845

• FREIGHTLINER: 9533N178

• FREIGHTLINER: A22-15817A-001

• FREIGHTLINER: MVA1-1048

• FREIGHTLINER: RNCA10658100

• JBAR: 402284

• JOHN DEERE: AR49960

• JOHN DEERE: AR59779

• KYSOR: 2399004

• KYSOR: 2399020

• KYSOR – OLD: 404028

• MACK: 2790-HV27072

• MACK: 7979-404028

• MOTIVAIR: 1-1047

• MOTIVAIR: 1-1445

• MOTIVAIR: 1-1842

• MOTIVAIR: 1-1844

• MOTIVAIR: 18629

• MOTIVAIR: 44590

• MURRAY: 207501

• NAVISTAR INTERNATIONAL: 175575-C1

• NAVISTAR INTERNATIONAL: 301305-C91

• NAVISTAR INTERNATIONAL: 446994-C1

• NDNS: 175575C1

• NDNS: 301305C91

• NDNS: 446994C1

• NDNS: A2215817A001

• NDNS: ABPN83323048

• NDNS: ABPN83323058

• NDNS: ABPN83323118

• NDNS: ABPN83323188

• NDNS: MVA11048

• OMEGA: 32-10902

• OMEGA: 32-10902-E

• OMEGA: 32-R2250

• PACCAR: 1-1844Q

• PRIMATECH: PTAC1336

• RED DOT – AFTERMARKET: 71R2250

• RED DOT – FACTORY: RD-4125-36P

• ROADFORCE: RF123B404218

• ROADFORCE: RF429B404112

• TRUCK AIR – MEI: 27699

• TRUCK AIR – MEI: 28065

• TRUCKAC+: T6723

• TTA/C: 13-4404

• VERSATILE: 53620

• VOLVO: 176272

• VOLVO: 176275

• VOLVO: 176276

• WESTERN STAR: 61018-5005

• WESTERN STAR (alt): A22-15817-A

Interchange Numbers

• 003-4221

• 003-4619

• 026476-9

• 03-14002

• 1-1844

• 1-2629

• 11-3076

• 111051

• 1162474

• 1162474-9

• 1336

• 1392636

• 168902C1

• 1697525

• 175575C1

• 175575C91

• 176272

• 176275

• 176276

• 207501

• 232-8417

• 2399004

• 268476

• 271474

• 279-2083

• 2790HV27072

• 2P4338

• 301305C91

• 32-10902-E

• 34221

• 34619

• 35845

• 404028

• 404171

• 405098

• 4379-RD412536

• 4379-RD412536P

• 446994C1

• 61018-5005

• 650648

• 650654

• 651390

• 6T9395

• 70272229

• 715 902 C1

• 715902C1

• 71R2250

• 7979-404028

• 842948900

• 850-9230

• 8P-5346

• 8P-5349

• 8P5346

• 8P5349

• 8P5350

• 9054582

• 925618

• 925620

• 932-1216

• 9533N178

• 9533N397

• 9533N419

• 9533N420

• 9533N422

• 9P-3498

• 9P3498

• A10-6557

• A22-15817A-001

• A42609

• A43186

• A63865

• ABP N83 323048

• ABP N83 323058

• ABP N83 323118

• ABP N83 323188

• AM81002

• AM81006

• AR49960

• AR59779

• BA13450

• BD10150

• BD13300

• BD14600

• BE10150

• D4ZZ-19618-B

• E-807008

• F43646

• L73646

• RD412536

• RDHRD412536P

• RDT71R2250

• RNCA10-6581-00

• SWI4516

• VE2057

• ZGG11048

• ZGG11844
