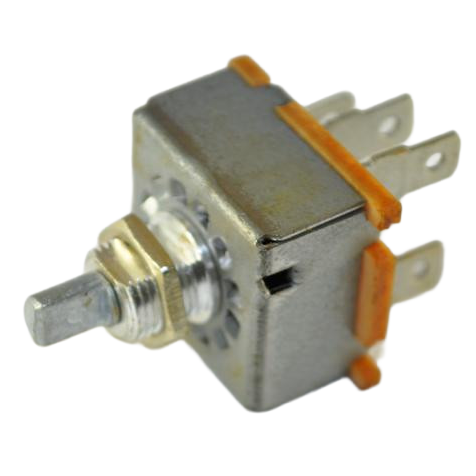

71R1160 5-Terminal Rotary Switch Off-Low-Med-High (25 Amp, 12VDC)

Description

A dependable blower switch makes daily HVAC control simple. The Red Dot 71R1160 is a 5-terminal rotary switch built for 3-speed blower control with an Off–Low–Med–High function.

It features a DP3T design and a 25 amp (12VDC) rating for heavy-duty mobile HVAC circuits. In addition, the compact base dimensions and standard 7/16-28 UNF mounting thread help it fit common dash and panel layouts. This model is listed as a short shaft style.

Use the detailed specifications and interchange numbers below to confirm the correct match before ordering.

Product Specifications

• Part Type: Rotary Switch (Blower Switch, 3-Speed)

• Red Dot Part No.: 71R1160

• Red Dot Factory No.: RD-5-9833-0P

• Rating: 25 amps, 12VDC

• Function: Off–Low–Med–High

• Type: DP3T

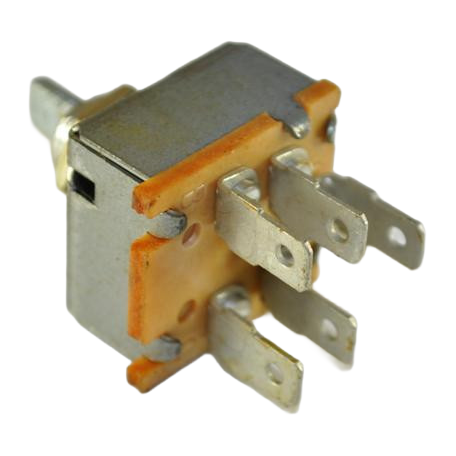

• Terminal/Harness: 5 Terminal

• Terminal Type: 1/4″ Male Blade

• Base Length: 1 5/32″

• Base Width: 1 1/16″

• Overall Depth: 1 1/4″

• Flange to Shaft Height: 11/16″

• Diameter Thread: 7/16-28 UNF

• D Shaft Diameter: 3/8″

Cross References

• TEXAS TRUCK AC: 850-6903

• TEXAS TRUCK AC (alt): 850-6903A

• ACT: SWC-300

• AIRSOURCE – MEI: 1151

• ALLIANCE: ABP N83 322150

• ALLIANCE: ABP N83 322152

• ALLIANCE: ABP N83 322290

• ALLIANCE (alt list): ABP N83 323063

• ALLIS CHALMERS: 71195109

• BLUEBIRD: 4320925

• CASE IH: 168822-C2

• CASE IH (alt): L73617

• CLIMATECH: BA1020

• CLIMATECH: BA1190

• CLIMATECH: BA1390

• COOLSTAR – MEI: 903-1338

• FIAT-ALLIS: 1195109

• FIAT-ALLIS: 71195109-5

• FLEETRITE: ZGG19240

• FLEETRITE (alt list): ZGG11019

• FREIGHTLINER: BOA80 926 00 109

• FREIGHTLINER: BSM322290

• FREIGHTLINER: BSM323008

• FREIGHTLINER: MVA1-9240

• JBAR: 450190

• JOHN DEERE: AH84588

• JOHN DEERE: AR53155

• JOHN DEERE: AR59964

• JOHN DEERE: AR82014

• KYSOR: 2199005

• KYSOR (alt list): 2118003

• KYSOR (alt list): 2199027

• MACK: 3230-221519

• MACK: 4428-2T754A

• MACK: 7979-220635

• MACK: IMR2355

• MOBILE CLIMATE CONTROL: 201-300

• NAVISTAR INTERNATIONAL: 1661420-C1

• NDNS: 1661420C1

• NDNS: ABPN83322150

• NDNS: ABPN83322152

• NDNS: ABPN83322290

• NDNS: BOA8092600109

• NDNS: MVA19240

• OMEGA: 29-12913

• OMEGA (alt): 29-21901

• PACCAR: 1-1019Q

• PRIMATECH: PTAC1151

• RED DOT: RD-5-9833-0P

• RED DOT – AFTERMARKET: 71R1160

• RED DOT – AFTERMARKET (alt): 71R1165

• RED DOT – FACTORY: RD-5-3779-0P

• TRANS AIR: 113006

• TRP/CLIMATECH: BA13900

• TRP/CLIMATECH: BA29600

• TRUCK AIR – MEI: 18568

• TRUCKAC+: T2409

• TTA/C: 10-1403

• Volvo (as provided): RDHRD598330P

Interchange Numbers

• 04320925

• 1151

• 1195109

• 168822C2

• 1911506027

• 20017

• 201-300

• 2118003

• 2199027

• 232-8376

• 247-8145

• 4379-RD598330

• 4379-RD598330P

• 4428-2T754A

• 71195109

• 71195109-5

• 71R1160

• 7979-220635

• A42622

• ABP N83 322150

• ABP N83 322290

• ABP N83 323178

• AR53155

• AT197520

• BA10200

• BA11900

• BA13900

• BOA80-926-00-059

• BSM322290

• BSM323008

• L73617

• RDH RD 5 9833 0

• RDH RD5 9833 0

• RDHRD598330P

• RDT71R1160

• SWI1338

• ZGG11019

• ZGG19240
