71R1150 5-Terminal Rotary Blower Switch (Off–Low–Med–High), 25A 12V

Description

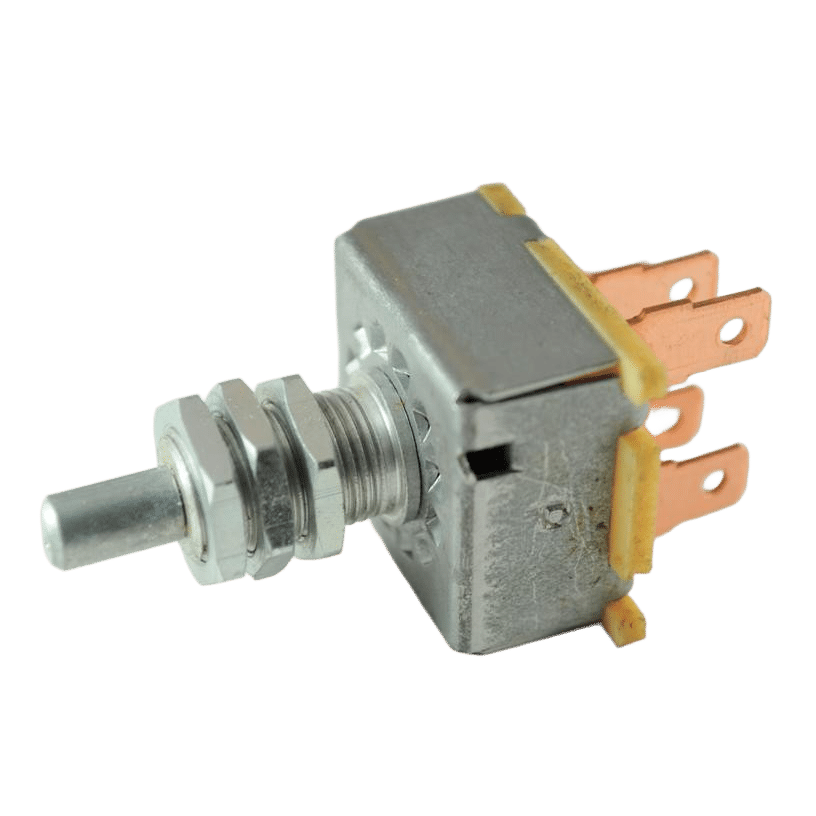

When a blower motor won’t stay on the right speed, the switch is often the first place to look. The Red Dot 71R1150 rotary blower switch is a 5-terminal switch designed for 3-speed blower control with a clear Off–Low–Med–High pattern.

Because this switch is rated 25 amps at 12VDC, it supports common heavy-duty HVAC blower loads. In addition, it uses 1/4″ male blade terminals, which makes it easy to connect with the correct harness. For best results, use the recommended 850-9522 wire harness.

Why This Switch Works Well

• Simple Off–Low–Med–High control for blower speed selection

• Heavy-duty rating for reliable performance

• Standard blade terminals for straightforward wiring

• Wide interchange coverage for fleet and OEM lookup

Product Specifications

• Part Type: Rotary Blower Switch (3-Speed)

• Red Dot Part No.: 71R1150

• Red Dot Factory No.: RD-5-3646-0P

• Function: Off–Low–Med–High

• Switch Type: DP3T

• Rating: 25 amps, 12VDC

• Number of Terminals: 5

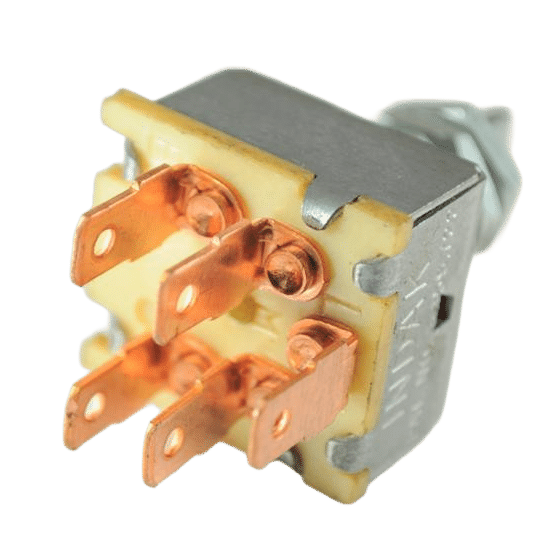

• Terminal Type: 1/4″ Male Blade

• Base Length: 1″

• Base Width: 1″

• Overall Depth: 1 1/4″

• Flange to Shaft Height: 1″

• Thread Diameter: 7/16 – 28 UNF

• D-Shaft Diameter: 3/8″

• Shaft / Description: Blower switch with 1 1/8″ long shaft

• Harness Note: Use 850-9522 wire harness

Cross References

• TEXAS TRUCK AC: 850-6902

• TEXAS TRUCK AC (alt): 850-6902A

• AIRSOURCE – MEI: 1150

• ALLIANCE: ABP N83 322150

• ALLIANCE: ABP N83 322190

• AP AIR: 205-107

• BERGSTROM: 223153

• BERGSTROM: 890072

• CLIMATECH: BA1065

• TRP/CLIMATECH: BA10650

• COOLCAB: 901002

• COOLCAB: 901006

• COOLSTAR – MEI: 903-1334

• EUCLID IND: E-807101

• EVERCO HD: 901014

• FOUR SEASONS: 35702

• FREIGHTLINER: BOA80 926 00 059

• FREIGHTLINER: BOA80 926 00 109

• FREIGHTLINER (alt): RDH RD5 3646 0

• JOHN DEERE: AR82014

• KYSOR: 2199027

• MACK: 3917-62321-G2

• MACK: 4379-RD536460

• MOBILE CLIMATE CONTROL: 113-006

• MOBILE CLIMATE CONTROL: 201-305

• MOTIVAIR: 1-1019

• MOTIVAIR: 14611

• MOTIVAIR: 24838

• MOTIVAIR: 32143

• MURRAY: 207419

• NDNS: ABPN83322150

• NDNS: ABPN83322190

• NDNS: BOA8092600059

• NDNS: BOA8092600109

• NDNS: RDHRD536460

• OMEGA: 29-21905

• PACCAR: 651690

• PACCAR: 65169P

• PACCAR: HV36015

• PACCAR (alt): RD-5-3646-0

• PRIMATECH: PTAC1150

• RED DOT – AFTERMARKET: 71R1150

• RED DOT – FACTORY: RD-5-3646-0P

• ROADFORCE: RF1676506206

• ROADFORCE: RF5418900598

• ROADFORCE: RF76903809

• TRUCK AIR – MEI: 44876

• TRUCKAC+: T2408

• TTA/C: 10-1402 (old TTAC number)

• VOLVO: 3102744

• VOLVO: 3949301

• VOLVO: 892110

• VOLVO: V11493

• WESTERN STAR: 61522-5004

Interchange Numbers

• 02-7075264

• 08303141

• 1-1019

• 1-2968

• 1-3488

• 1-9240

• 11-2611

• 11-3050

• 113-006

• 1150

• 1366877

• 1661420C91

• 176262

• 1911505768

• 2045-899

• 207419

• 2199004

• 2199025

• 220635

• 223153

• 232-8375

• 24191909

• 27075264

• 279-2086

• 29-21901

• 3102744

• 35702

• 35703

• 3917-62321-G2

• 3949301

• 405875

• 4379-RD536460

• 4379-RD536460P

• 61522-5004

• 650609

• 650657

• 651690

• 651690BSM

• 651690S

• 71R1150

• 842831100

• 850-6902

• 892110

• 90036524

• 903-1334

• 925520

• ABP N83 322190

• ABP N83 322680

• AH84588

• BA10650

• BA14250

• BB14400

• BOA-80-926-00-109

• BOA80-926-00-059

• D1RY-19986-A

• E-807101

• FG10050

• HV27437

• RD5-3646-0P

• RDHRD536460P

• RDT71R1150

• RDTRD536460P

• SWI1334

• V11493

• VJ8676

• VJ8676-1

• VJ8903

• XA4480
