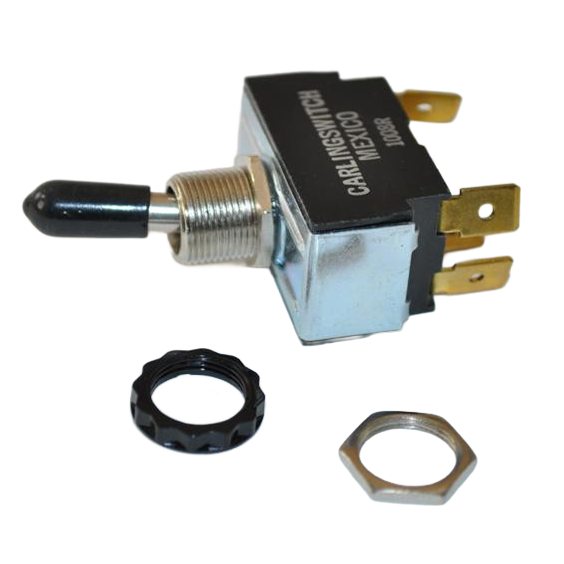

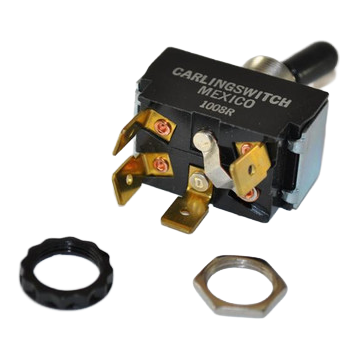

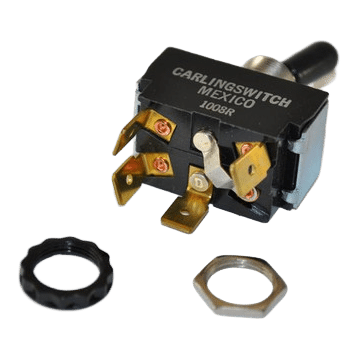

71R0400 4-Terminal Toggle Switch (DPDT, On–On–On)

Description

When a control circuit needs a reliable multi-position switch, a DPDT toggle is a clean solution. The Red Dot 71R0400 is a 4-terminal toggle switch with an On–On–On function, which makes it useful for selecting modes or directing power through multiple circuits.

Because fitment and panel space matter, this switch includes defined base dimensions and threaded mounting specs. In addition, it’s supported by a wide interchange list, so it’s easier to match older fleet references and service software.

Why This Switch Works

• DPDT design for flexible circuit control

• On–On–On function for multi-position selection

• Compact mounting footprint for panels and consoles

• Widely cross-referenced in HD vehicle systems

Product Specifications

• Part Type: Toggle Switch

• Red Dot Part No.: 71R0400

• Red Dot Factory No.: RD-5-0071-0P

• Type/Description: DPDT / Chrome

• Function: On–On–On

• Number of Terminals: 4

• Terminal/Harness: 4 Terminal

• Base Length: 1 5/16″

• Base Width: 3/4″

• Flange to Blade End: 1 1/4″

• Flange to Bezel Shaft Top: 1/2″

• Thread Diameter: 15/32-32 UNS-2A

• Keyway: .072 x .038

Cross References

• TEXAS TRUCK AC: 850-7147

• AIRSOURCE – MEI: 1028

• ALLIANCE: ABP N83 322035

• ALLIANCE: ABP N83 322340

• BERGSTROM: 650655

• CLIMATECH: BE1000

• CLIMATECH: BE1020

• TRP/CLIMATECH: BE10000

• COOLSTAR – MEI: 901-1118

• EUCLID IND: E-807111

• FLEETRITE: ZGG13486

• FLEETRITE: ZGG16596

• KYSOR: 2199007

• MACK: 4379-RD500710

• MOTIVAIR: 31413

• MOTIVAIR: 35431

• NAVISTAR INTERNATIONAL: 1669348-C1

• NDNS: 1669348C1

• NDNS: ABPN83322035

• NDNS: ABPN83322340

• PACCAR: 221030

• PRIMATECH: PTAC1028

• RED DOT – AFTERMARKET: 71R0400

• RED DOT – FACTORY: RD-5-0071-0

• ROADFORCE: RF4766506783

• TRUCK AIR – MEI: 44875

• TRUCKAC+: T2436

• TTA/C: 10-1013

• VOLVO: 3093411

• VOLVO (alt): G2028504

• VOLVO (alt): RDHRD500710P

• WESTERN STAR: 60090-4416

• Caterpillar: RD-5-0071-0

• John Deere: 842948700

• Mack (alt): 4379-RD50071-0

Interchange Numbers

• 1-3486

• 1-3597

• 1-6597

• 1028

• 11-2610

• 1669348C1

• 1863735

• 2199007

• 2199104

• 221030

• 232-8355

• 3093411

• 4379-RD500710

• 4379-RD500710P

• 60090-4416

• 650644

• 650655

• 71R0400

• 842948700

• 850-7147

• 901-1118

• ABP N83 322035

• ABP N83 322340

• BE10000

• BE10200

• E-807111

• G2028504

• RDHRD500710P

• RDT71R0400

• SWI1118

• VE2054

• ZGG13486

• ZGG16596
