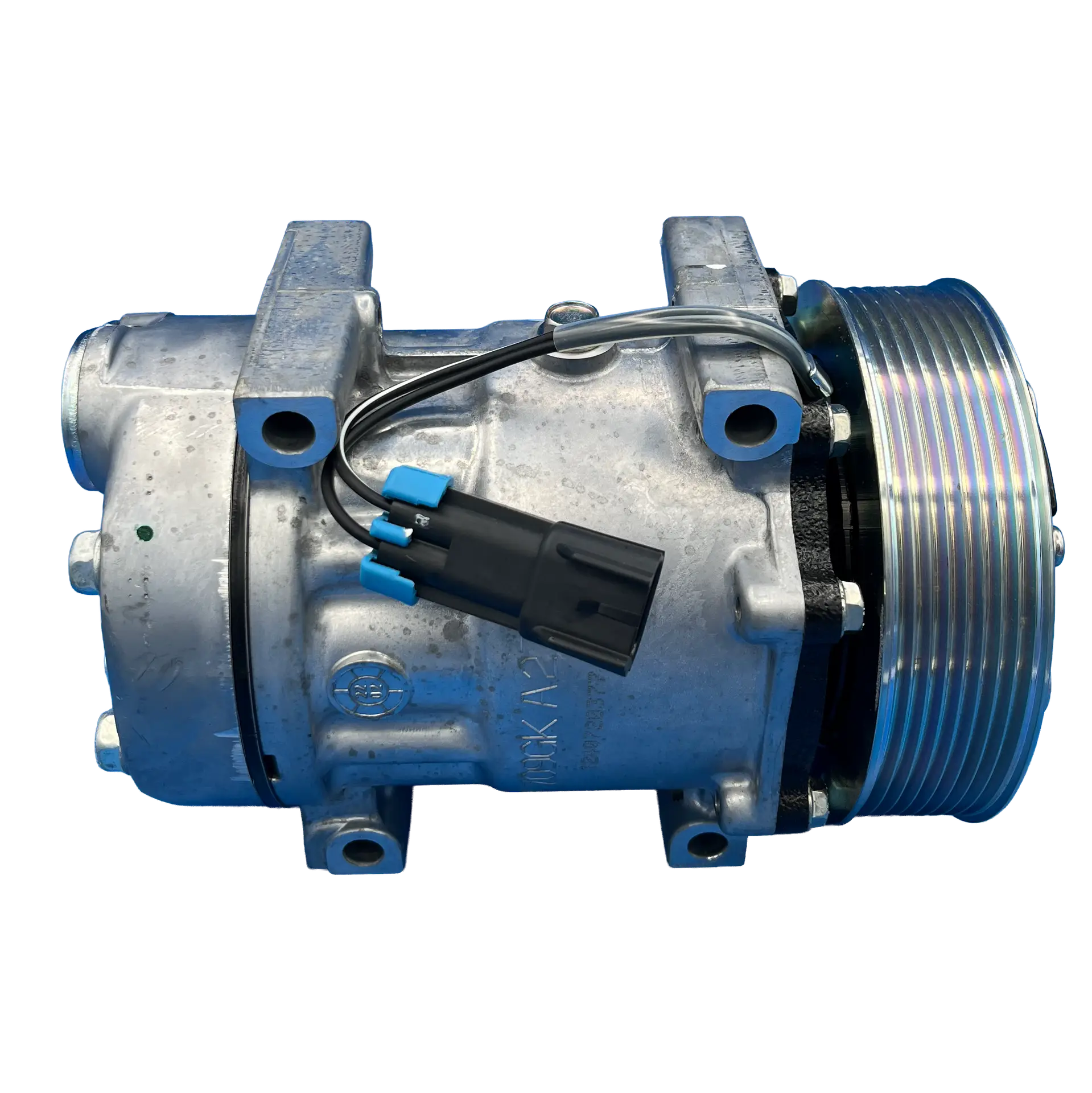

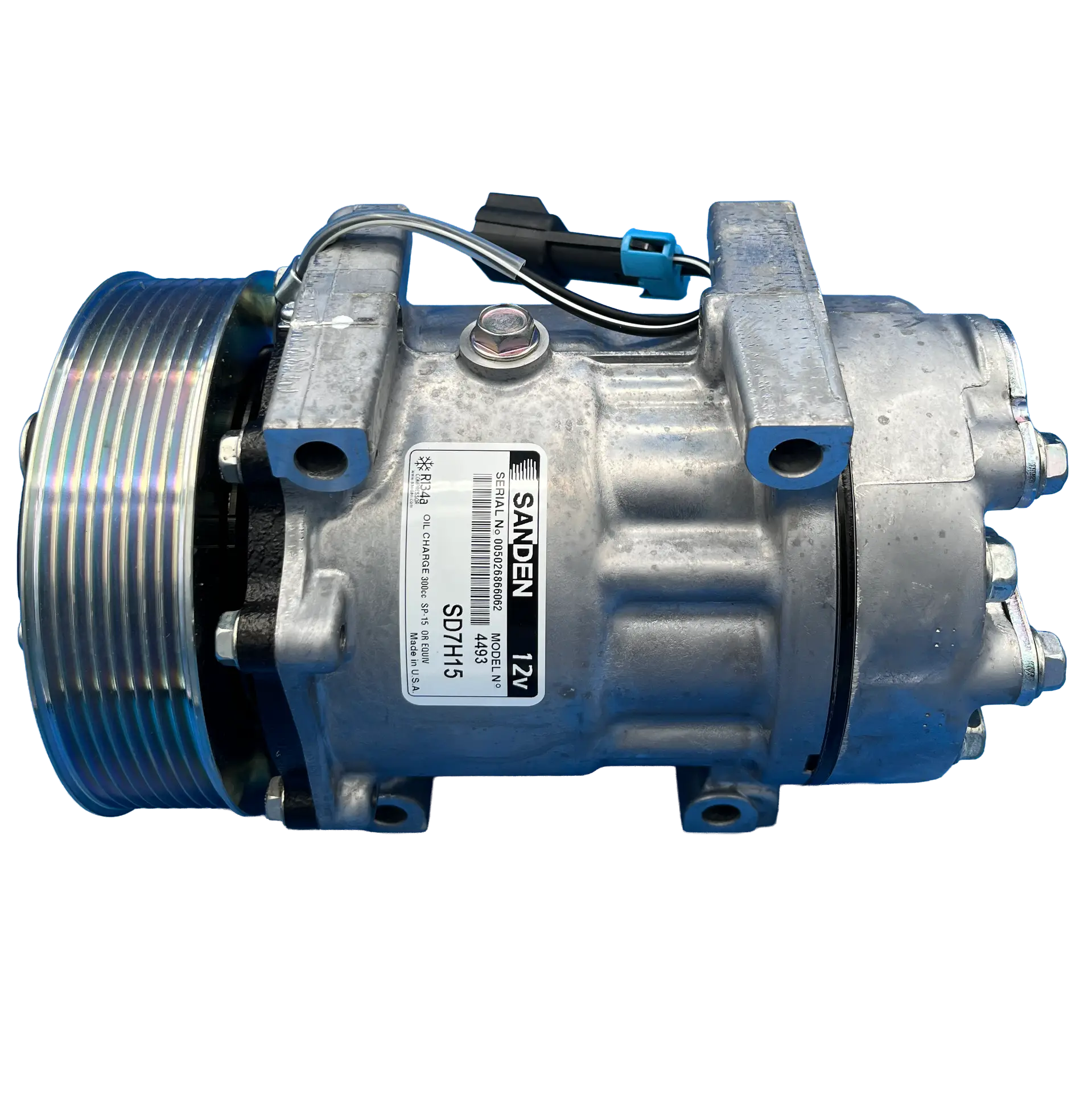

Compressor BT5-4733

Description

Interchange Numbers:
1401362, 20-04493, 20357157, 203757157, 20388777, 20388778, 20501067, 2602743C91, 265-7327, 300-4727, 300-4734, 330-2410, 4379-RD5112560, 4379-RD5112560, 4379-RD5112560P, 4379-RD5112560P, 4493, 4493SAN, 4733, 4892, 5385, 75R81362, 8080569, ABP N83 304634, ABP N83 304634, ACC3410, RDHRD5112560P, RDT75R81362, RDT75R81362

ESSENTIAL SPECIFICATIONS
Compressor Family: SD7H15
Style: HD
Mount Type: SD7 Direct Short
Ear ID: T92 B87
Refrigerant: R134A
Displacement: 155.00
Rotation Direction: CW
Oil Qty (cc): 300
Cylinder Head: WV
Port Angle: H
Port Clocking: Rear
Head Port Style: O-Ring
Rotor Size: 130
Rotor Groove: PV8
Gauge Line
to First Groove: 31.58
Gauge Line
to Middle Groove: 44.09
Gauge Line
to End Groove: 56.50
Coil Voltage: 12
Connector: 2 Wire Female Packard #15300002
