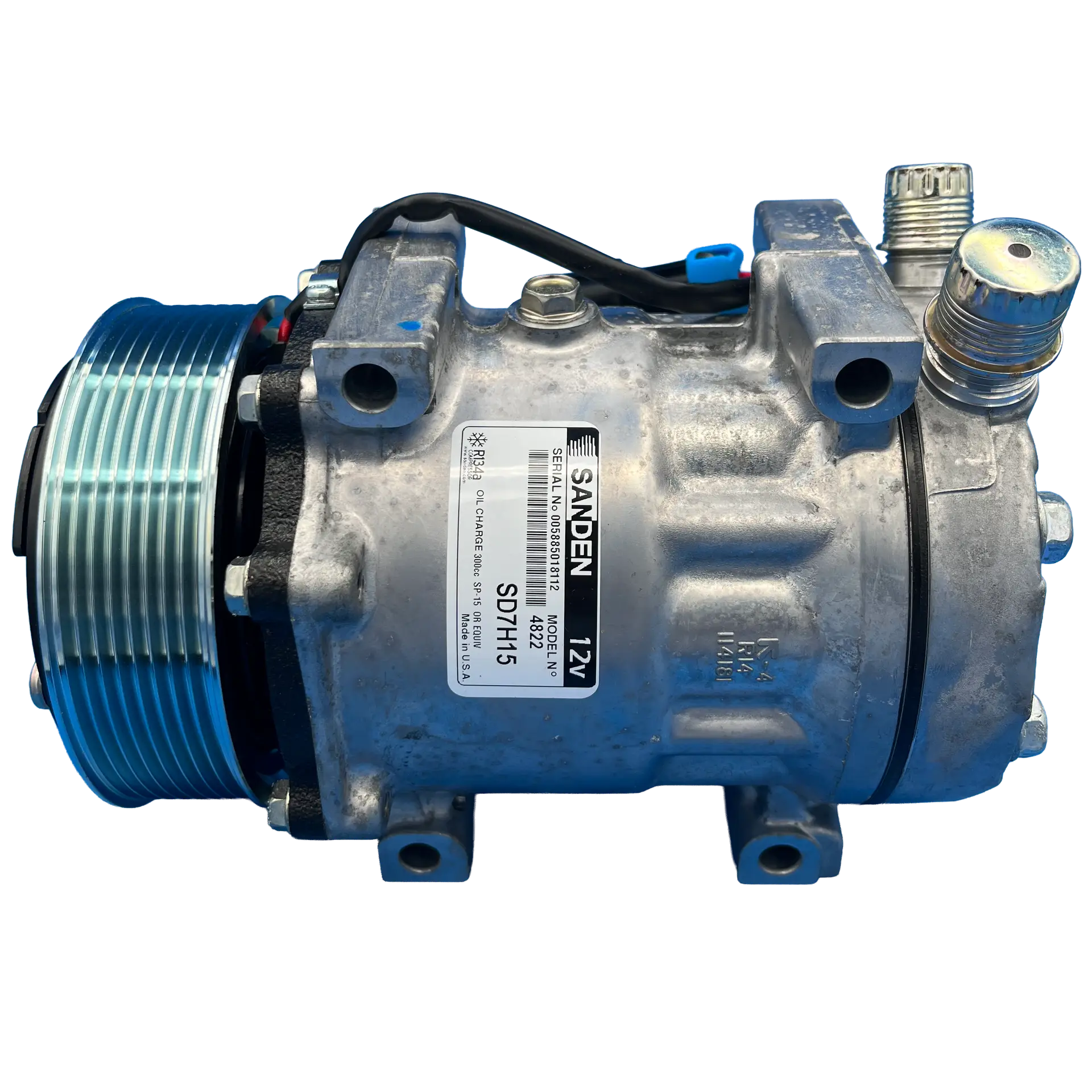

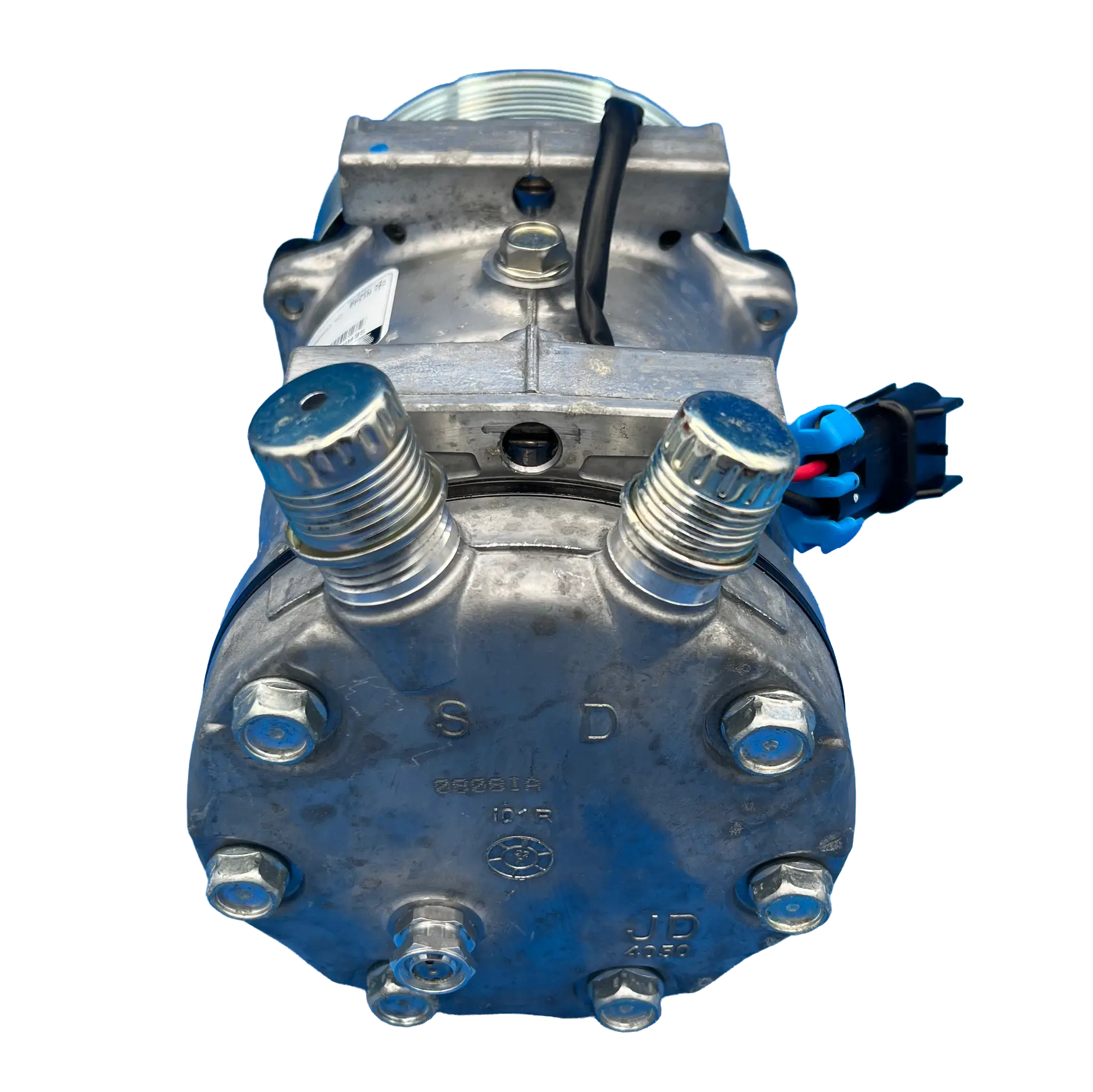

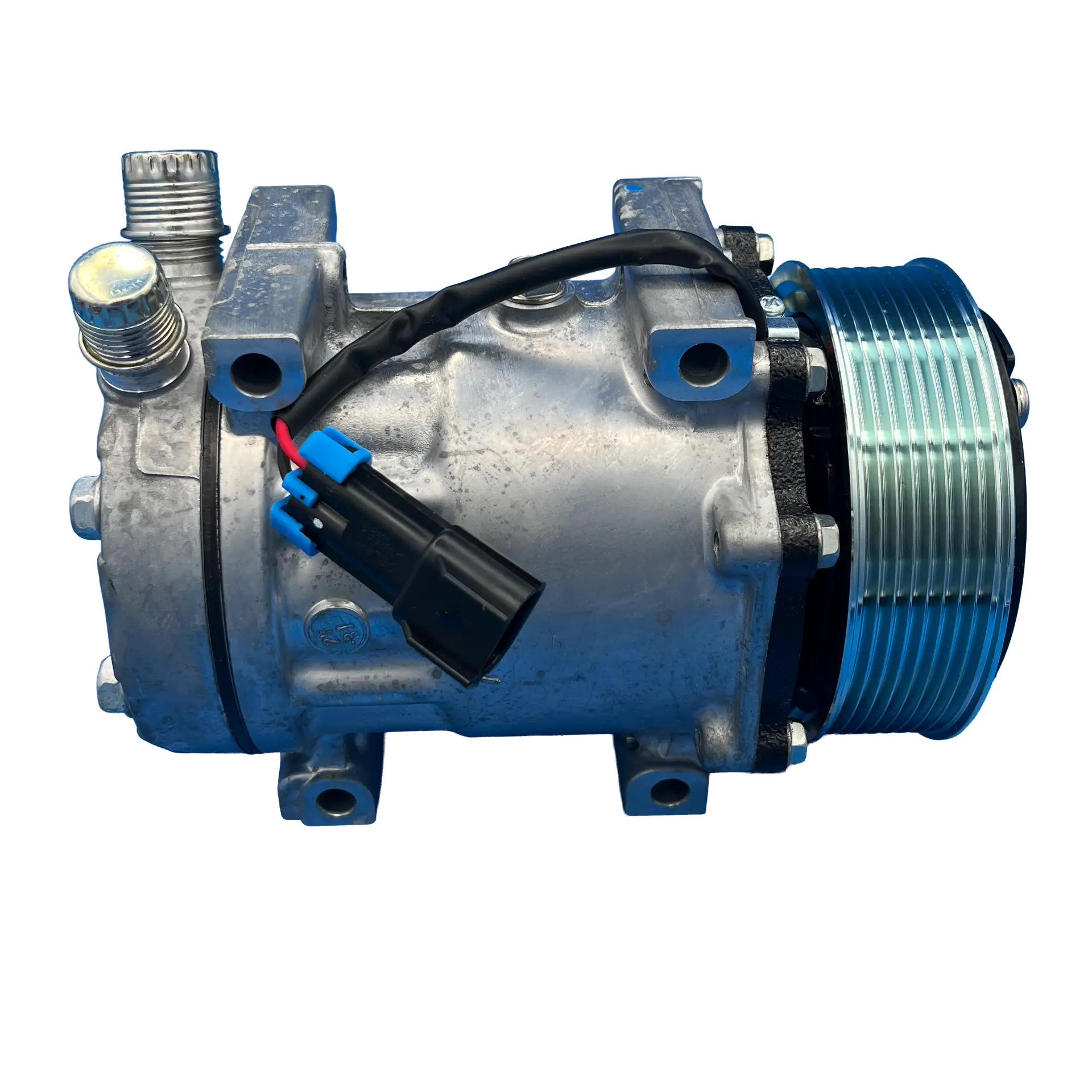

Compressor BT5-4822

Description

Interchange Numbers:
03-0803, 1401133, 1410027, 20-04822, 20-04822, 232-9280, 300-4413, 300-4433, 330-2544, 3551405C1, 4321, 4379-RD5107380, 4379-RD5107380, 4379-RD5107380P, 4379-RD5107380P, 4822, 5349, 58785, 75R84622, ABP N83 304403, ABP N83 304403, ACC3544, RDH RD5 10738 0, RDHRD5107380P, RDT75R84622, RDT75R84622,

ESSENTIAL SPECIFICATIONS
Compressor Family: SD7H15
Style: HD
Mount Type: SD7 Direct Long
Ear ID: T92 B87
Refrigerant: R134A
Displacement: 155.00
Rotation Direction: CW
Oil Qty (cc): 300
Cylinder Head: JDA
Port Angle: V
Port Clocking: 12:00
Head Port Style: 3/4X7/8
Rotor Size: 119
Rotor Groove: PV8
Gauge Line
to First Groove: 36.58
Gauge Line
to Middle Groove: 49.00
Gauge Line
to End Groove: 61.50
Coil Voltage: 12
Connector: 2 Wire Female Packard #15300002
