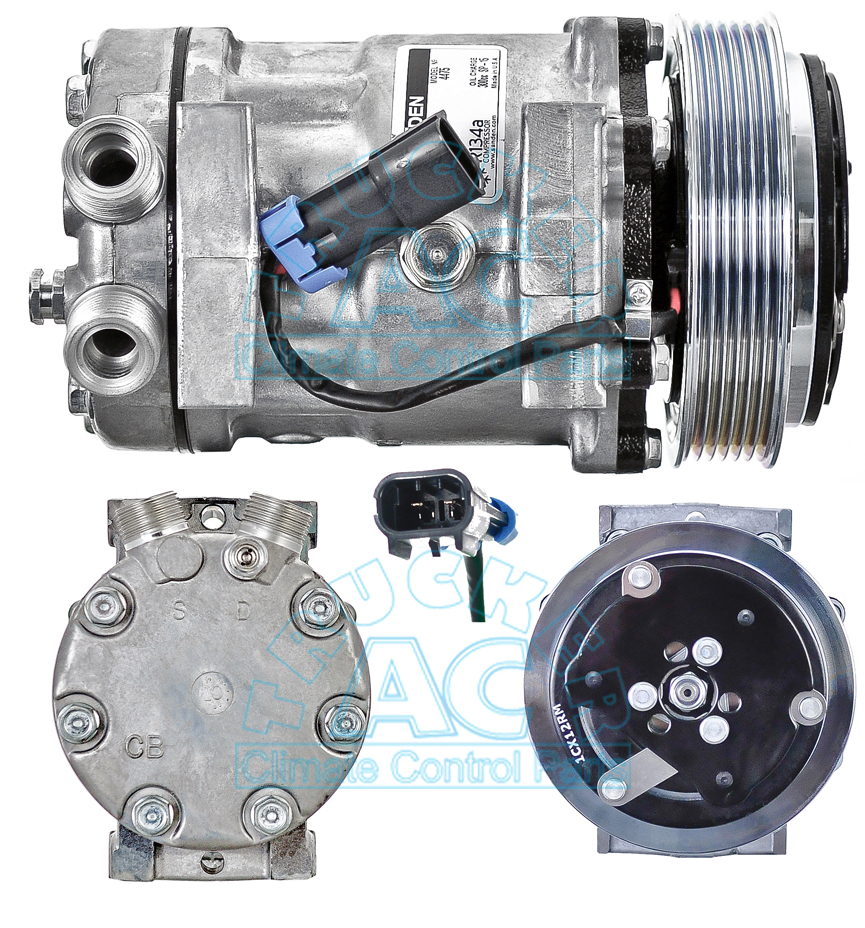

Compressor BT5-4756

Description

Interchange Numbers:
1401126, 1412003, 20-04756, 20-04756, 22-47693-000, 232-9247, 300-4138, 300-4143, 330-2508, 402062, 4379-RD5102660P, 4379-RD5102660P, 4475, 4756, 5330, 58708, 75R84212, 85100874, ABP N83 304103, ABP N83 304103, ABP N83 304532, ACC3508, FLT4475Q, RDHRD5102660P, RDT75R84212, RDT75R84212, ZGG705014,

ESSENTIAL SPECIFICATIONS
Compressor Family: SD7H15
Style: HD
Mount Type: SD7 Direct Long
Ear ID: T92 B87
Refrigerant: R134A
Displacement: 155.00
Rotation Direction: CW
Oil Qty (cc): 300
Cylinder Head: CBA
Port Angle: V
Port Clocking: 12:00
Head Port Style: 1X14
Rotor Size: 125
Rotor Groove: PV6
Gauge Line
to First Groove: 36.70
Gauge Line
to Middle Groove: 45.60
Gauge Line
to End Groove: 54.50
Coil Voltage: 12
Connector: 2 Wire Female Packard #15300002
