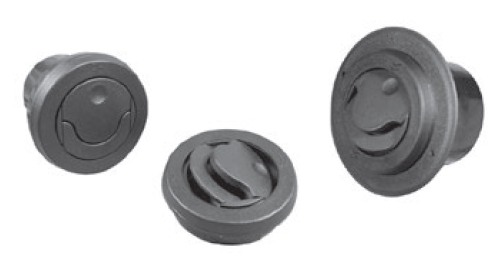

Coyote 2.7″ Sonora Threaded Louver with 2″ Hose Adapter (06-2022-9)

Description

Overview

The Coyote 06-2022-9 Sonora Louver combines the proven Sonora design with a threaded body and a 2″ rear hose adapter.
Because it locks in place using a threaded collar, it installs securely in thicker panels or ducts.
The compact face design ensures efficient airflow while maintaining a professional appearance.
In addition, its integrated adapter connects directly to standard 2″ flexible ducting for smooth air transfer.

---

Function and Performance

This Sonora Series louver channels air through curved vanes that minimize turbulence and sound.
The threaded mount holds firmly under vibration, making it ideal for mobile and industrial equipment.
As a result, airflow remains consistent even in harsh environments.
In addition, the 2″ hose adapter provides a tight, leak-free connection for reliable performance in heating or cooling applications.

---

Durability and Design

Coyote molds the 06-2022-9 from high-strength black ABS plastic designed to resist vibration, UV exposure, and heat.
Because the threaded collar and adapter are molded into one piece, the vent stays rigid and sealed throughout use.
The satin-black finish provides a professional OEM-grade appearance that matches other Sonora louvers.
In addition, the smooth internal airflow path reduces pressure loss and system noise.

---

Installation

Installation is quick and secure.
Insert the Sonora Threaded Louver through the panel cutout and tighten it using the included retaining nut.
Attach the 2″ flexible hose to the rear adapter and secure it with a clamp or tie.
Because of its one-piece design, the assembly installs easily without extra fittings or adhesives.
In addition, the threaded connection prevents loosening caused by vibration.

---

Applications

The Coyote 06-2022-9 Sonora Louver is used in buses, RVs, off-road machinery, trucks, and industrial HVAC systems.
It’s ideal for dash panels, wall vents, and overhead ducts where a small, secure air outlet is required.
Because of its threaded body and adapter combo, it’s also used in OEM HVAC systems and retrofit projects that demand reliability and precision.

---

Specifications

• Series: Sonora Louvers

• Part Number: 06-2022-9

• Face Diameter: 2.7″ (68.6 mm)

• Hose Adapter Size: 2″ (50.8 mm)

• Mounting Style: Threaded collar with retaining nut

• Material: Black ABS plastic

• Applications: Bus, RV, truck, off-road, and industrial HVAC

• Features: Threaded mount, compact airflow, adjustable vent face, durable construction
