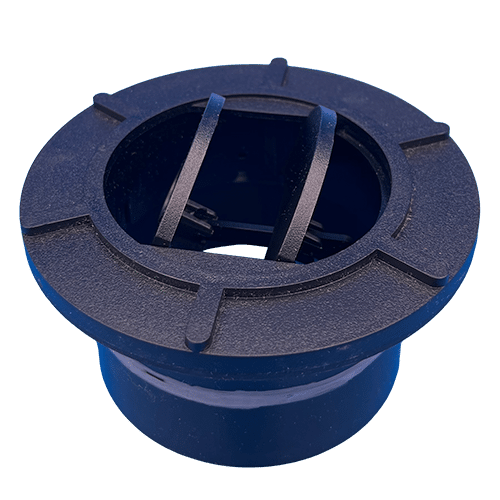

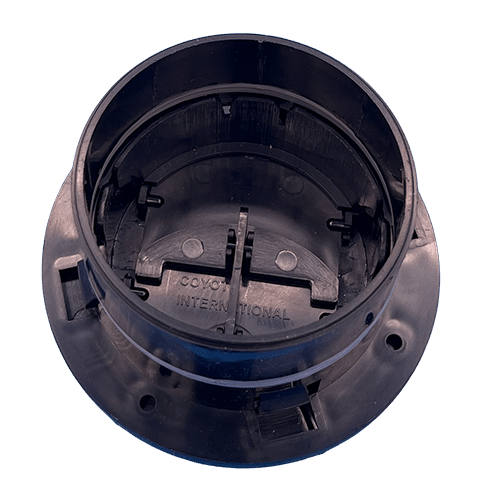

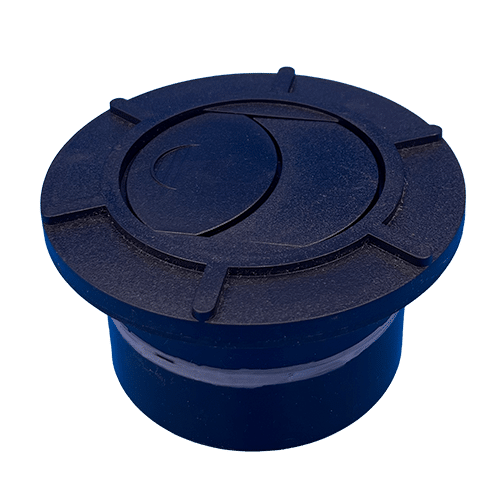

Coyote Horizon Series Diffuser with 3″ Hose Adapter (06-2016-4)

Description

Overview

The Coyote 06-2016-4 Diffuser combines an adjustable vent face and a built-in hose adapter.
Because it connects straight to a 3-inch hose, it cuts setup time and removes the need for extra fittings.
It also spreads air evenly, helping keep cabins comfortable and temperatures balanced.

---

Function and Performance

This 3-inch diffuser directs air smoothly across its curved front face.
The soft vane design keeps airflow steady and quiet.
As a result, it works well for both heating and cooling modes.
In addition, the wide openings and smooth interior reduce pressure loss and prevent hot or cold spots.
Therefore, your system runs quieter and more efficiently.

---

Durability and Design

Coyote makes the 06-2016-4 from impact-resistant ABS plastic that stands up to vibration, heat, and UV light.
Because the adapter and vent are molded as one piece, the connection stays firm under daily use.
Its satin-black finish looks clean and professional, matching other Horizon Series vents.
In addition, the plastic keeps its shape over time, even in high-temperature areas.

---

Installation

Setup is simple and quick.
Mount the diffuser assembly into the panel and tighten it in place.
Then, attach the 3″ flexible hose to the rear adapter and secure it with a clamp or zip tie.
Because the rear collar grips tightly, it prevents air leaks or movement.
Technicians can complete the whole process in minutes.

---

Applications

The Coyote 06-2016-4 Horizon Series Diffuser is used in buses, RVs, off-road machinery, agricultural vehicles, and industrial HVAC systems.
It works especially well for dash vents, overhead air outlets, and operator cab panels.
Because of its compact design, it fits into small spaces while still moving high air volume.

---

Specifications

• Series: Horizon Diffusers

• Part Number: 06-2016-4

• Face Diameter: 3.5″ (approx.)

• Hose Adapter Size: 3″ (76 mm)

• Material: Black ABS plastic

• Airflow: Adjustable, quiet operation

• Applications: Bus, RV, truck, off-road, industrial HVAC

• Features: One-piece design, low noise, easy setup, durable ABS construction
