Coyote 4″ Sonora Louver with Mounting Retainer (06-2003)

Description

Overview

The Coyote 06-2003 Sonora Louver combines clean styling with dependable airflow performance.
Its 4″ round face offers wide air coverage, while the mounting retainer locks the vent firmly in place without screws or adhesives.
Because of its simple design, it installs easily in both OEM and retrofit HVAC systems.
In addition, the Sonora’s modern look fits seamlessly into dash panels, ceilings, and interior walls.

---

Function and Performance

This Sonora Series louver directs airflow smoothly through curved internal vanes that reduce noise and turbulence.
The vent face rotates for full directional control, allowing operators to focus airflow exactly where it’s needed.
As a result, it improves comfort, airflow balance, and system efficiency in compact HVAC layouts.
In addition, the retainer ring ensures a tight, rattle-free fit even under heavy vibration.

---

Durability and Design

Coyote molds the 06-2003 from high-strength black ABS plastic engineered for temperature stability and impact resistance.
Because the louver and retainer are designed to work as a single unit, they maintain alignment and airflow integrity over time.
The satin finish offers a professional OEM-grade appearance that blends with other Coyote vents.
In addition, the smooth surfaces make cleaning simple and prevent dust buildup.

---

Installation

Installation is quick and straightforward.
Place the mounting retainer into the panel cutout, then snap the Sonora Louver into position until it locks securely.
Because the retainer design eliminates the need for screws, installation time is reduced significantly.
In addition, the friction-fit construction keeps the louver firmly in place and eliminates vibration noise.

---

Applications

The Coyote 06-2003 Sonora Louver is used in buses, RVs, trucks, off-road machinery, and industrial HVAC systems.
It’s ideal for dash vents, ceiling outlets, and wall-mounted air outlets where adjustable airflow is required.
Because of its strong retention and simple mounting system, it’s popular in OEM production, fleet equipment, and retrofit installations.

---

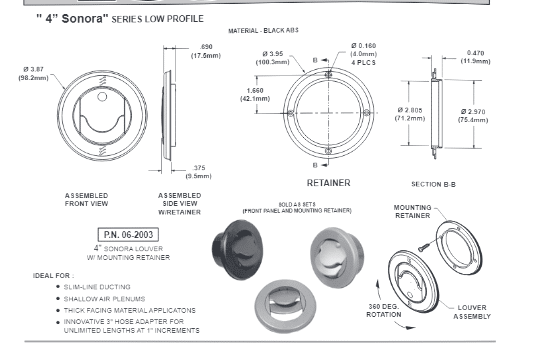

Specifications

• Series: Sonora Louvers

• Part Number: 06-2003

• Face Diameter: 4″ (101.6 mm)

• Mounting Style: Retainer mount (snap-in)

• Material: Black ABS plastic

• Airflow Control: Adjustable, 360° directional

• Applications: Bus, RV, truck, off-road, and industrial HVAC

• Features: One-piece mounting system, quiet operation, durable design, quick installation
