Coyote 4″ La Mesa Louver with 3″ Hose Adapter, 360° Grille Rotation (06-2002-2)

Description

Overview

The Coyote 06-2002-2 La Mesa Louver combines high-performance airflow with full-range directional control.
Because it includes a 3″ rear hose adapter, it connects directly to standard ducting for efficient air delivery.
The 360° rotating grille allows users to fine-tune airflow direction anywhere within the vent’s range, improving cabin comfort and system balance.
In addition, its 4″ round face gives a clean, finished appearance suitable for both OEM and retrofit use.

---

Function and Performance

This La Mesa Series louver provides smooth, even airflow through a contoured grille assembly that rotates a full 360°.
The integrated 3″ hose adapter ensures steady pressure and minimal turbulence for heating or cooling systems.
As a result, it provides adjustable, quiet airflow suited for cabs, enclosures, or passenger spaces.
In addition, the rotatable face design gives operators precise directional control to target airflow exactly where needed.

---

Durability and Design

Coyote molds the 06-2002-2 from high-strength black ABS plastic designed to withstand vibration, UV exposure, and extreme temperatures.
Because the louver and adapter are molded as a single unit, it delivers long-term durability and prevents air leakage.
The 360° grille mechanism moves smoothly but holds position firmly, ensuring reliable operation over time.
In addition, the satin finish gives the vent a professional, OEM-grade look that complements other Coyote louvers.

---

Installation

Installation is fast and secure.
Mount the La Mesa Louver into the panel opening, then attach the 3″ flexible hose to the rear adapter.
Tighten the hose with a clamp or zip tie for a leak-free connection.
Because the design is a one-piece molded assembly, setup is quick and requires no additional fittings.
In addition, the rotating grille allows easy airflow adjustment after installation.

---

Applications

The Coyote 06-2002-2 La Mesa Louver is used in buses, RVs, trucks, off-road machinery, and industrial HVAC systems.
It’s perfect for dash outlets, ceiling vents, or wall panels where both style and functionality matter.
Because of its rotating grille and durable build, it’s a preferred choice for OEM installations, fleet equipment, and retrofit ventilation upgrades.

---

Specifications

• Series: La Mesa Louvers

• Part Number: 06-2002-2

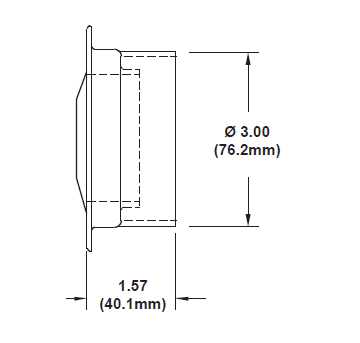

• Face Diameter: 4″ (101.6 mm)

• Hose Adapter Size: 3″ (76.2 mm)

• Rotation: 360° grille rotation

• Material: Black ABS plastic

• Mounting Style: Panel-mount with integrated hose adapter

• Applications: Bus, RV, truck, off-road, and industrial HVAC

• Features: Full 360° airflow control, quiet operation, durable ABS construction, easy installation
